SUPERATV Can-Am Commander 4" Portal Gear Lift

SAT-PGH-7-14
Please Call for Availability
888-411-8493

Description

Can-Am Commander 4" Portal Gear Lift

Why We Make Them?
Take back your torque with Gen 2 Gear Driven Performance by SuperATV. We all know monster tires rob your much-desired horsepower. To keep that ultimate performance and gain an extra 4" of coveted lift, you want GDP from SuperATV. This kit comes complete with everything you need including portal-ready 4" rear offset trailing arms available in multiple colors. They give you a total wheelbase of 80" meaning more stability and performance on top of the gains from your GDP Portals. It's a match made in heaven.

Why GDP?
The GDP portal lift system spares no details as the most comprehensive kit on the market. SuperATV knows suspension and transferred over 10 years of suspension engineering into the GDP portal lifts. GDP starts by vertically relocating the axle centerline while retaining factory steering geometry - a must if you want to increase the life of your axles, differential, and drive train components. Pair that with a 1.4:1 gear reduction (approximately 30%), and you've got a performance driven machine!

Our unique portal gear hub design includes new 4" extended length rear trailing arms. These extended length rear trailing arms require SuperATV's Rhino Brand axles. In addition, if running factory 14" wheels, you must use 2" wheel spacers.

Performance

  • Pair with SuperATV lift kits, a arms, and axles for extreme performance
  • 30% gear reduction
  • Designed for all terrains and riding styles


Axles

  • You will not chop your axles. GDP is the only kit on the market compatible with aftermarket axles with no modifications
  • GDP maintains performance-ready axle angles


Impenetrable Bearings and Seals

  • First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
  • Automotive grade bearings
  • Press fit, precision ground gears and shafts to eliminate unwanted slop


Precision-Ground Gears: drive gear, idler gear and driven gear

  • Precision-ground chromium titanium alloy gears for industry best performance
  • Eliminates friction for reduced heat, noise and allows you to run at higher speeds
  • Reduced friction build-up
  • Quiet gears at all speeds
  • Performs at machine's fullest capacity


Gen 2 Portal Drive Shaft

  • Designed to be unbreakable
  • Made of 4340 hardened steel
  • 40 mm diameter
  • M30 threads


Steering Arm

  • Heavy duty structural member
  • 10.9 grade hardware
  • Modular design for improved functionality


Gen 2 Aluminum Housing

  • CNC machined solid aluminum housing for superior strength
  • Polished aluminum for long lasting, stylish finish


How About Adjustability? Pair with our adjustable a arms

  • GDP understands the need for adjustability allowing you to custom tailor your machine to match your riding needs
  • Eliminates unwanted, premature tire wear caused from misalignment
  • Camber adjustability on all SuperATV a arms


Mounting Plates and Pivot Blocks

  • CNC formed, fully gusseted 5/16" mounting plates
  • Forged pivot blocks
  • Carbon steel caliper mounting plates


Gen 2 Slotted Rotors for Unmatched Cooling

  • Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
  • Ability to utilize different wheels on same hub
  • Extra thick hub designed to handle any torque
  • Stainless steel, braided brake lines included in Commander Max kits


Wheel Requirements

  • Requires a 14" or larger wheel
  • Wheels can not exceed 5" backspacing
  • Not compatible with dual beadlock wheels

FITMENT

SuperATV Part Number PGH-7-14-101
Will Fit:
  • Can Am Commander 800 : 2011-2015
  • Can Am Commander 1000 : 2011-2015

SuperATV Part Number PGH-7-14-102
Will Fit:

  • Can Am Commander 1000 Max: 2014-2015

SuperATV Part Number PGH-7-14-103
Will Fit:

  • Can Am Commander 800 : 2016+
  • Can Am Commander 1000 : 2016+

SuperATV Part Number PGH-7-14-104
Will Fit:
  • Can Am Commander 800 Max : 2016+
  • Can Am Commander 1000 Max : 2016+

SuperATV Part Number PGH-7-14-105
Will Fit:

  • Can Am Commander DPS with 220mm rotor : 2018
  • Can Am Commander XT with 220mm rotor : 2018
  • Can Am Commander 1000 Limited Mossy Oak : 2018

Overall Fitment
  • Can Am Commander 800 : 2011+
  • Can Am Commander 1000 : 2011+
  • Can Am Commander 800 Max : 2016+
  • Can Am Commander 1000 Max : 2014+
  • Can Am Commander 1000 Limited Mossy Oak : 2018
  • Can Am Commander DPS with 220mm rotor : 2018
  • Can Am Commander XT with 220mm rotor : 2018

FEATURES

Kit includes:
  • (2) 4" Extended Length Rear Trailing Arms

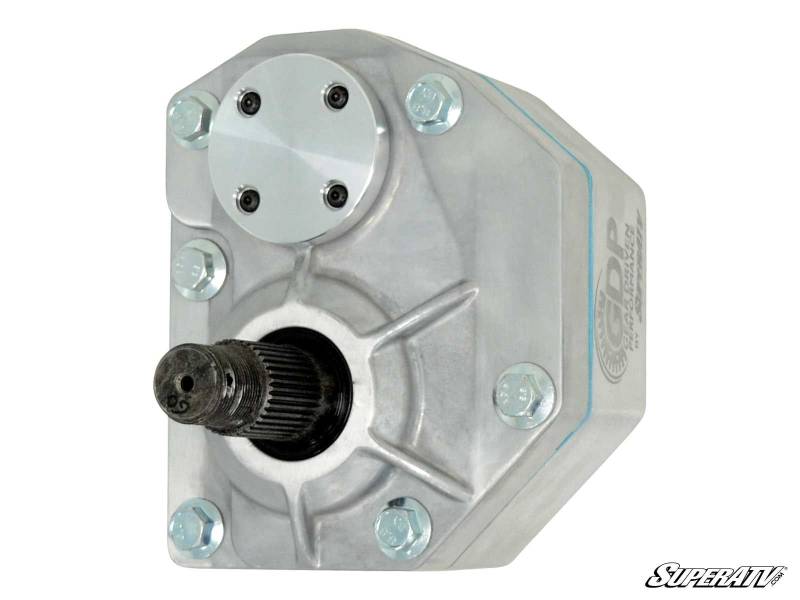

  • (4) Portal Gear Boxes
  • (4) Rotor Plates w/ Universal Hubs
  • (2) Front Spindles
  • (2) Steering Arms
  • (6) Caliper Mounting Brackets
  • Rear Brake Lines (where needed)
  • All Necessary Hardware


Notes:
Rhino or Rhino 2.0 Brand Axles Required.
If running factory 14" wheels, you must run 2" wheel spacers.
Not compatible with SuperATV 6" lift kit.
The Rear Trailing Arms will NOT work with Air Shocks.

Suspension Setup Max Tire Size
Stock w/ 4" Portals 29"
1.5" Forward Front A-Arms w/ 4" Portals 32"
2.5" Lift Kit w/ 4" Portals 32"
1.5" Forward Front A-Arms and 2.5" Lift Kit w/ 4" Portals 36"
Measurements taken with suspension fully compressed and at max turn. Although these are not fully representative of normal riding conditions, stated tire sizes will not rub. With minimal rubbing or trimming, larger sizes can be used.
