ROUGH COUNTRY 5 INCH LIFT KIT | AIR RIDE | RAM 1500 4WD (2019-2022)

RC-33830A
Pricing: $1,499.95

Customize Your Item

- Configure Lift -
 * required
Qty:
Free Shipping

Description

Transform your 5th generation RAM 1500 into an absolute BEAST with Rough Country’s 5in Suspension Lift Kit for Air-Ride Models. This all-inclusive kit comes with everything you need to give your truck an aggressive look and a formidable stance that complements the revamped design and upgraded look of this rugged vehicle.

Rough Country’s 5in Suspension Lift gives you plenty of increased ground clearance for off-road action and enough additional ride height to run up to 35in tires for a head-turning look that’s sure to command attention.

Each kit features a set of high-quality front and rear crossmembers with a laser-cut RC logo, giving the truck a fierce, but streamlined look after lifting. For true trailblazers, this kit also ships with a set of rear N3 Nitrogen-charged shock absorbers - valved specifically for a blend of on and off-road performance. This kit also includes an upgraded outer tie-rod that’s engineered to optimize turning and minimize bump steer while allowing you to fit a wider variety of wheels.

Best of all? You'll achieve better performance, bigger tires, and considerable protection all without sacrificing the look of your truck. All components are specifically designed to keep things nice and tidy underneath, utilizing drop brackets to promote proper geometry and leaving nothing hanging out in plain sight. Includes Rough Country’s Lifetime Replacement Guarantee.

FEATURES

  • Increased ground clearance
  • Levels front of vehicle with rear
  • Maintains factory air ride modes

NOTES - IMPORTANT

  • ONLY fits models with factory air ride suspension.
  • Does NOT fit 2019 "classic" models (5-lug)
  • Kit is not recommended for AWD models.
  • "TRX" models will achieve approximately 1" of additional lift.
  • Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
  • Does NOT fit factory wheels.

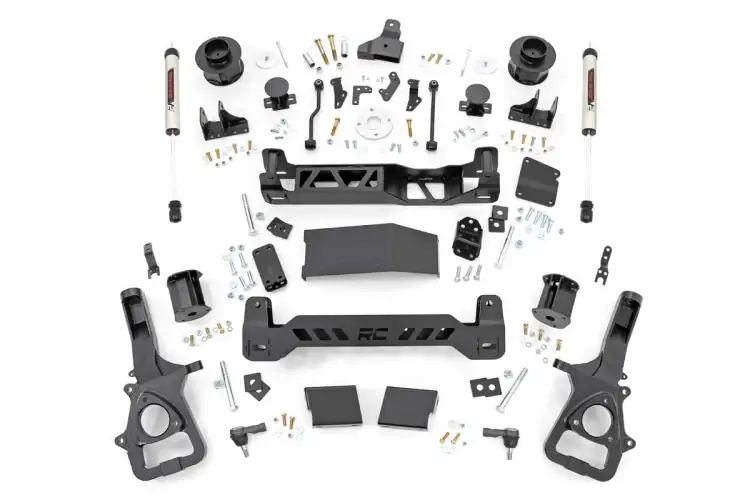

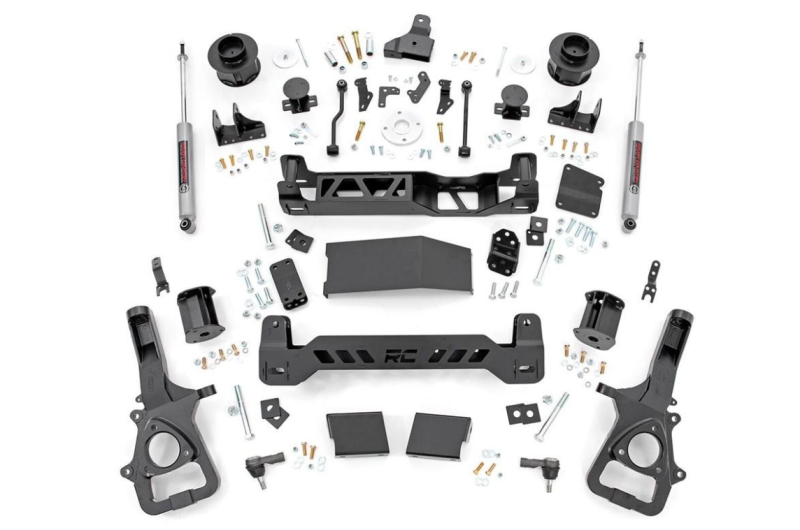

FRONT
  • Lifted knuckles
  • Strut spacers
  • Front crossmember
  • Differential drop brackets
  • Driveshaft spacer
  • Sway-bar links
  • Skid plate
  • Hardware
REAR
  • Coil spacers
  • Rear crossmember
  • Sway-bar links
  • Track bar bracket
  • Bump-stop extensions
  • Brake line brackets
  • Brake lines
  • Hardware
SHOCKS
  • (2) Rear Premium N3 series
Est. Install Time 7-8 hours
2019-2022 4WD Ram 1500
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R20 20x9 6x5.5 +0 -
35x12.50R20 20x9 6x5.5 +1 -
35x12.50R20 20x9 6x5.5 +12 -
35x12.50R22 22x9 6x5.5 +0 -
35x12.50R22 22x9 6x5.5 +1 -
35x12.50R22 22x9 6x5.5 +12 -
35x12.50R20 20x10 6x5.5 -18 Minor Trimming
35x12.50R20 2010 6x5.5 -19 Minor Trimming
35x12.50R20 20x10 6x5.5 -24 Minor Trimming
35x12.50R20 20x10 6x5.5 -25 Minor Trimming
35x12.50R22 22x10 6x5.5 -18 Minor Trimming
35x12.50R22 2210 6x5.5 -19 Minor Trimming
35x12.50R22 22x10 6x5.5 -24 Minor Trimming
35x12.50R22 22x10 6x5.5 -25 Minor Trimming
