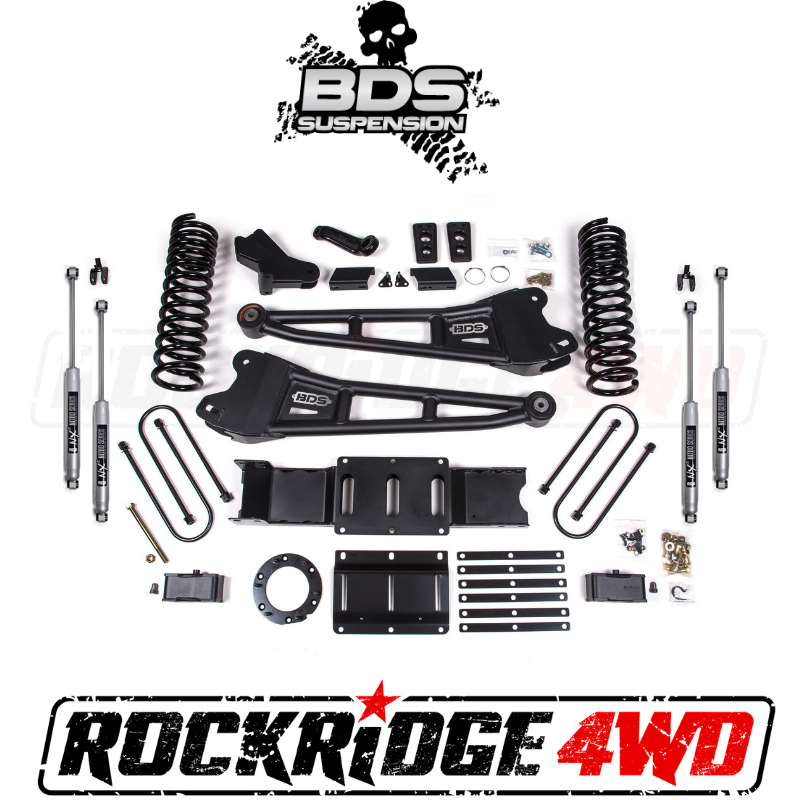

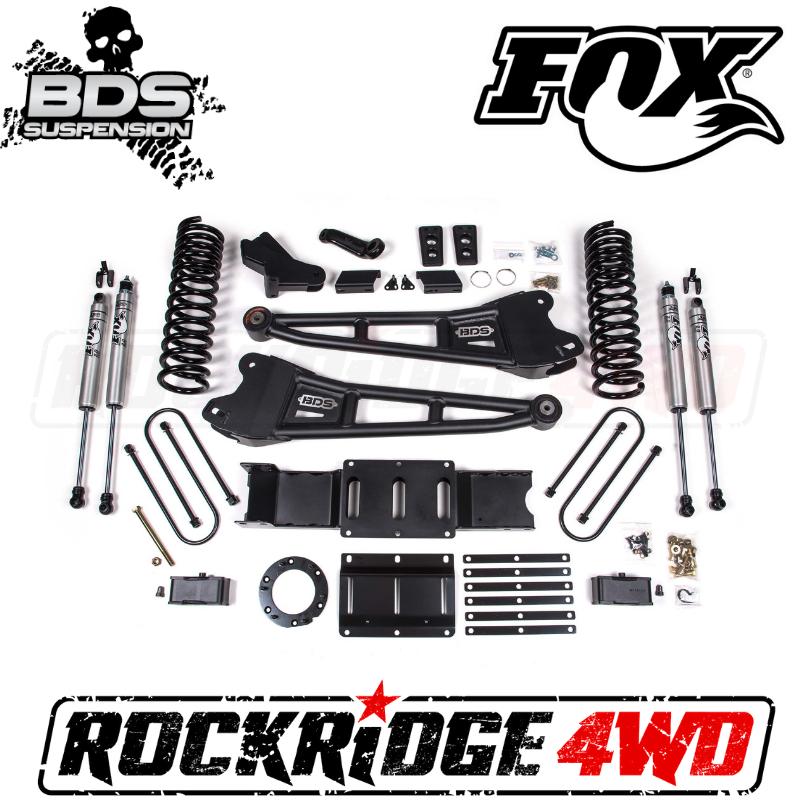

BDS 4" Radius Arm Lift System for 2019+ Ram 3500 4WD Diesel

BDS1656H
Pricing: $2,234.26

Customize Your Item

- Rear Overload Leaf -
 * required
- Transfer Case Indexing Ring -
 * required
- Shocks -
 * required
- Heavy Duty Adjustable Front Trac -
 * required
- RECOIL Traction Bar System | Ram -
 * required
Qty:
Free Shipping

Description

Designed to improve the looks and performance of your new RAM, these kits include everything necessary to correctly lift them for improved offroad capability with room for larger tires while maintaining on-road handling.



Up front these systems use a pair of (diesel specific) progressive rate 4" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to recenter the front axle. A pair of sway bar drop brackets reposition the OE sway bar for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.



At 4" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. BDS offers these indexing rings for both the 6-bolt and 8-bolt equipped trucks. In the rear of the RAM 3500 kits a 3" block and u-bolt kit is used for a level-to-slightly tail-high stance while maintaing tow capacity. Finishing out the rear are a matching set of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks.



As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these new 4" radius arm systems from BDS Suspension.

Important Kit Notes

  • T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
  • Will not fit rear air-ride equipped models
  • Kit designed for diesel models only
    • Tire & Wheel Combinations
    • 37x12.50 w/17x9/18x9/20x9 and 5.625" back spacing
    • 35x12.50 w/17x9/18x9/20x9 and 4.5" back spacing

*Trimming may be required*

  • Est. Installation: 7-8 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information

  • 2019 Dodge / Ram 3500 Pickup

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
