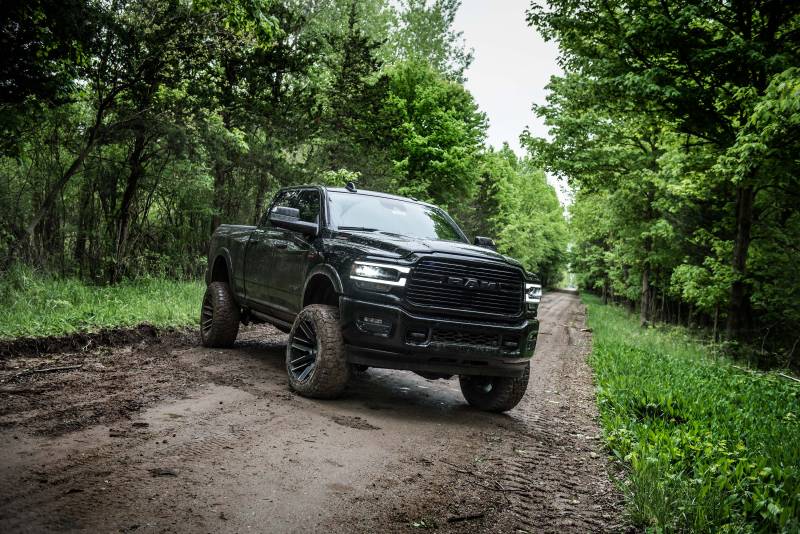

BDS 4" Radius Arm Lift System for 2019+ Dodge / Ram 2500 Pickup w/ Rear Coil

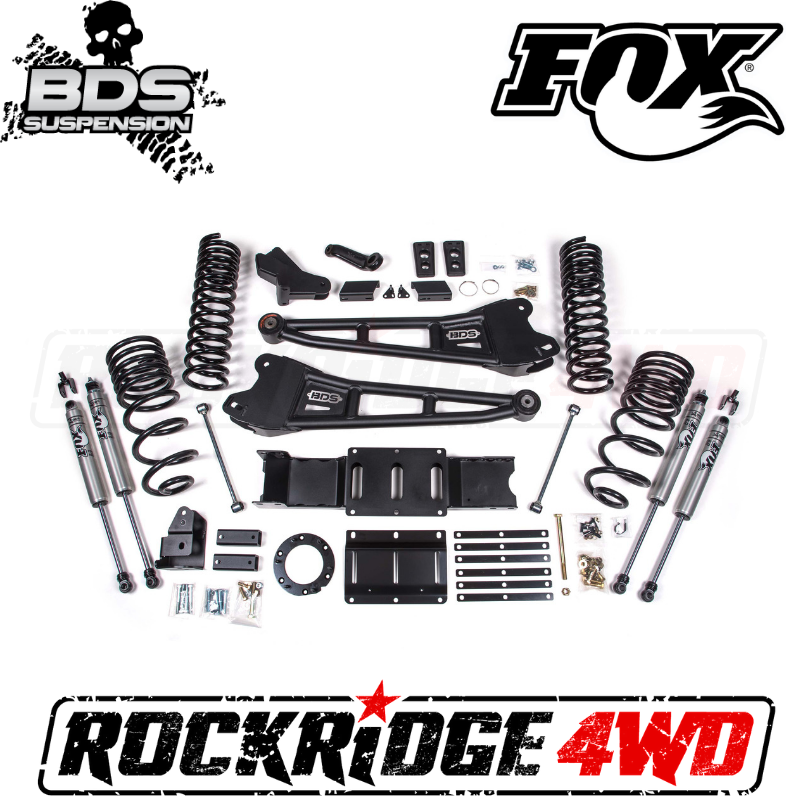

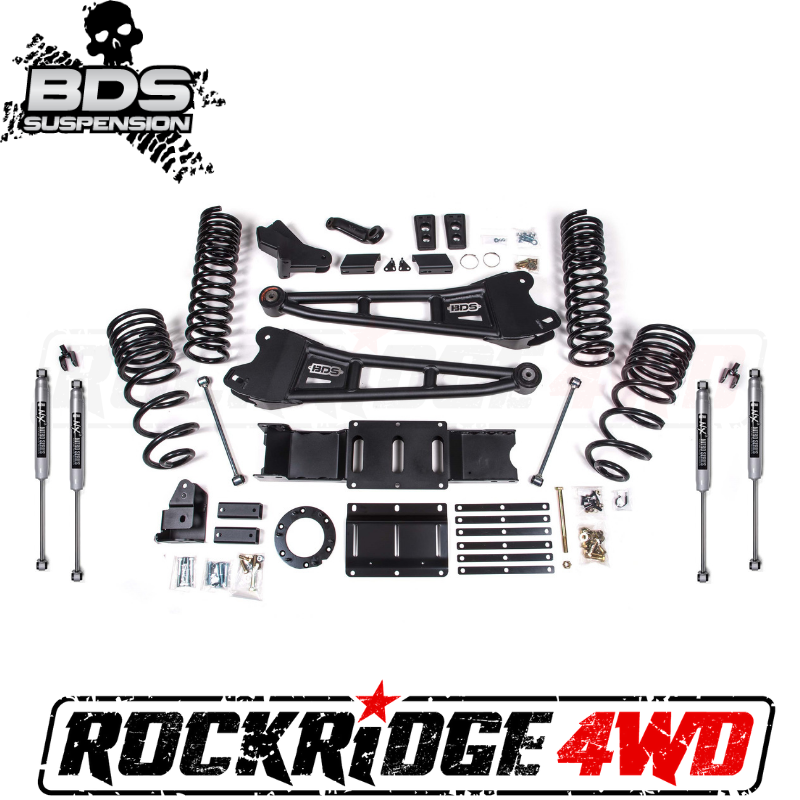

These kits have been engineered for improved on-road comfort and offroad capability. Kits include high strength tubular radius arms, front and rear progressive rate coil springs, your choice of gas shocks, steering correction and more allowing clearance for up to 37" tires. As with all BDS Suspension systems these new 4" radius arm systems are backed by Factory Protection Plus for peace of mind wherever you choose to explore.

BDS Suspension expands its listings for the late model 2019+ RAM 2500 4WD Diesel trucks with new 4" radius arm systems that are on the shelf ready to ship. Designed to improve the looks and performance of your new RAM, these kits include everything necessary to correctly lift them for improved offroad capability with room for larger tires while maintaining on-road handling.

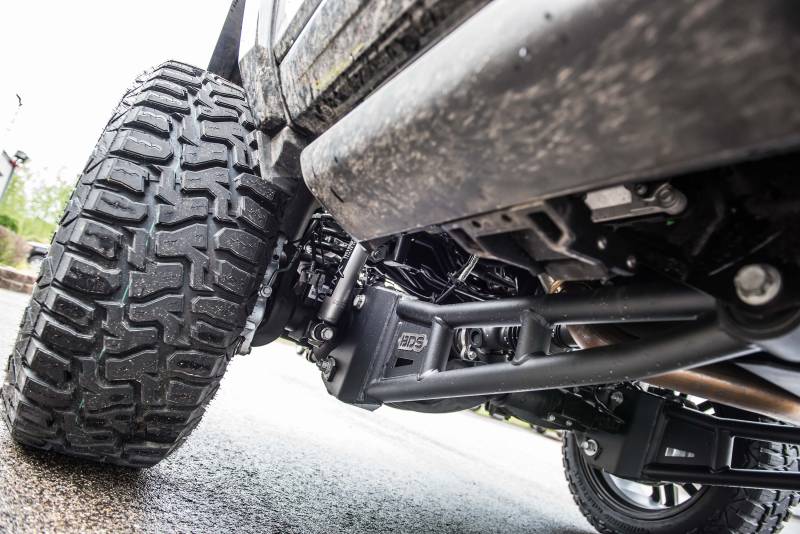

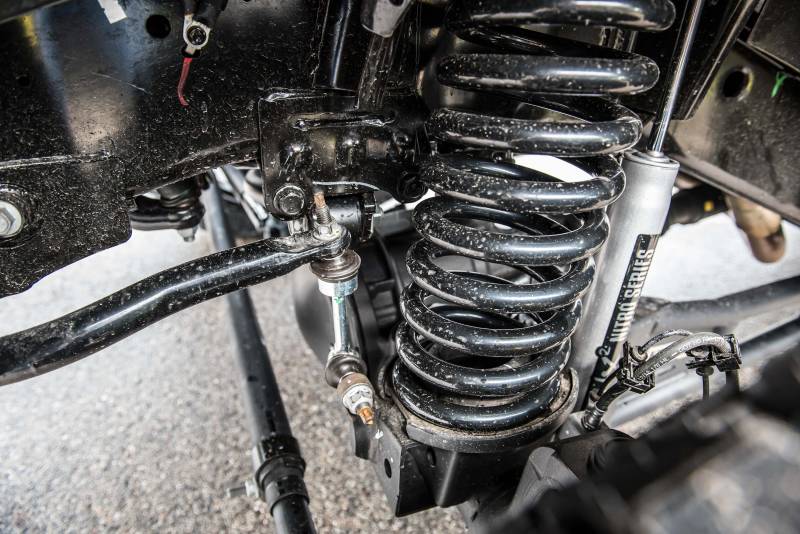

Up front these systems use a pair of (diesel specific) progressive rate 4" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.

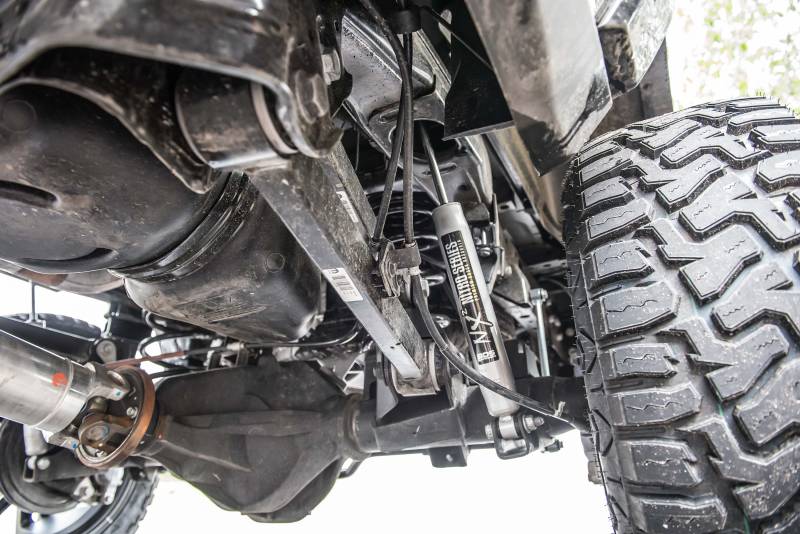

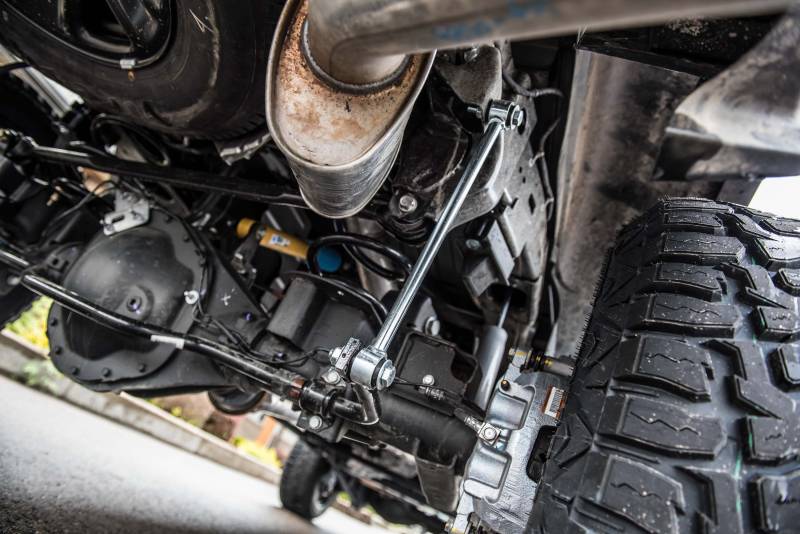

At 4" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. In the rear of the RAM 2500 kits 2.5" progressive rate coil springs are supplied to level out the stance and improve capability across all terrains without affecting load capacity. Extended rear sway bar end links and new bump stops are included to compensate for the lift along with a track bar bracket to re-center the rear axle. Finishing out the rear are a matching set of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks. As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these new 4" radius arm systems from BDS Suspension.

Vehicle Fitment Information

• 2019 Dodge / Ram 2500 Pickup w/ Rear Coil Springs

• Tire & Wheel Combinations
• 37x12.50 w/17x9/18x9/20x9 and 5.625" back spacing
• 35x12.50 w/17x9/18x9/20x9 and 4.5" back spacing

*Trimming may be required*

• Est. Installation: 7-8 hours
• Difficulty Level (easy 1 - 5 complicated): 4

Important Kit Notes

• T-case indexing ring designed for vehicles with 6-bolt design only, will not fit trucks with 8-bolt
• Will not fit rear air-ride equipped models
• Will not fit Power Wagon models
• Kit designed for diesel models only

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
