BDS 5.5" Radius Arm Lift Kit 2019-2020 Dodge / Ram 2500 Truck w/ Rear Coil | Gas Only

BDS1681H
Pricing: $2,481.63

Customize Your Item

- Shocks -
 * required
- Steering Stabilizer -
 * required
- Front Sway Bar Disconnect -
 * required
- Heavy Duty Adjustable Front Trac -
 * required
- Adjustable Rear Track Bar -
 * required
- Brake Line -
 * required
- Carrier Bearing Drop Kit -
 * required
Qty:
Free Shipping

Description

BDS takes the 2019+ RAM 2500 4WD Gas Trucks to the next level with this 5.5" Radius Arm System.

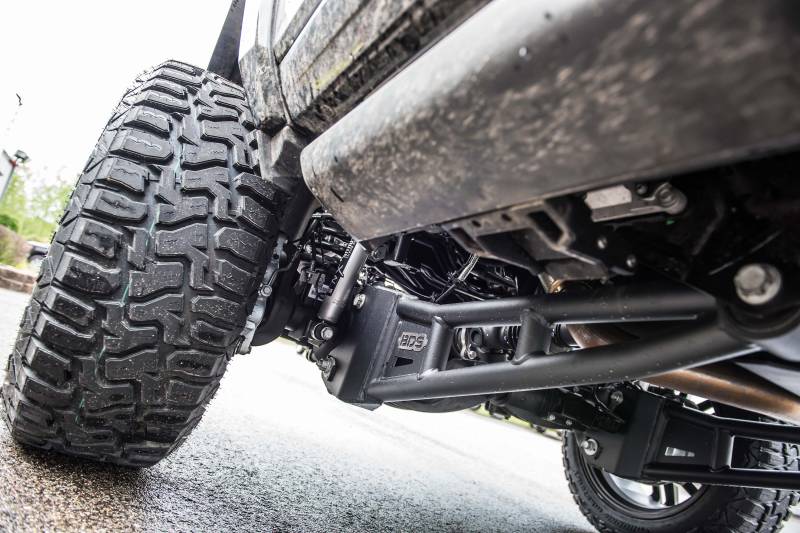

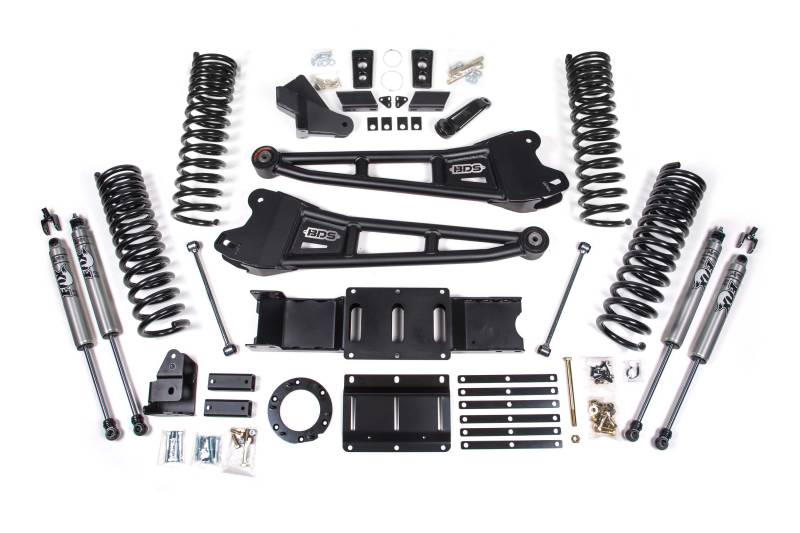

Designed to improve the looks and performance of your new RAM 2500, these kits include everything necessary to correctly lift them for improved offroad capability with room for larger tires while maintaining on-road handling. These systems use front and rear progressive rate coil springs to lift and provide a level to slightly tail high stance, forged drop pitman arm to correct steering angles along with HD track bar drop brackets to re-center the axles. Sway bars and bump stops are repositioned for proper functionality and front suspension geometry is corrected via a pair of high strength boxed radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance at each corner of the vehicle.

At 5.5" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS provides a heavy duty replacement adjustable transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these new 5.5" radius arm systems from BDS.

Important Kit Notes

  • 6.4L gas models will require exhaust modification to clear front driveshaft. Vehicle can be driven w/o front driveshaft for an exhaust shop to make necessary modifications
  • Will not fit rear air-ride equipped models
  • Will not fit Power Wagon models
  • Designed for gas models trucks



    • Tire & Wheel Combinations
    • 37x13.50 w/20x9 and 5.625" back spacing
    • 37x12.50 w/20x9 and 4.5-5.625" back spacing
    • 37x13.50 w/18x9 and 5.625" back spacing

*Trimming may be required*

  • Est. Installation: 6-8 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

  • 2019 Dodge / Ram 2500 Truck w/ Rear Coil Springs
  • 2020 Dodge / Ram 2500 Truck w/ Rear Coil Springs
