BDS 3.5" DSC Coilover Lift Kit for 2019-2023 Chevy / GMC 1/2 Ton Truck 4WD

These 3.5" DSC Coilover Systems are designed to build on the stout factory front suspension designed to take performance to the next level.

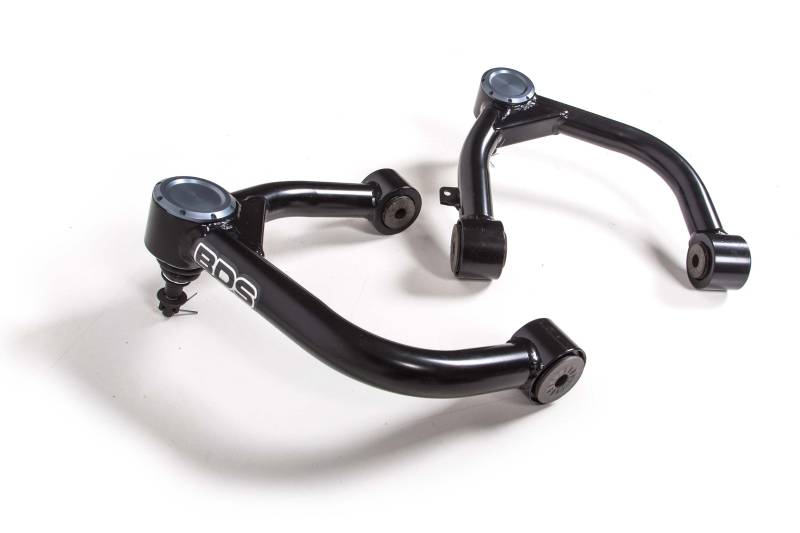

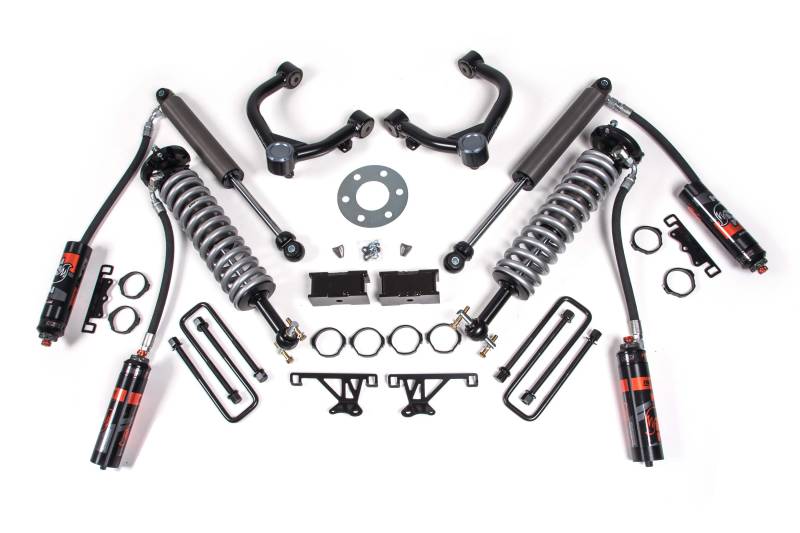

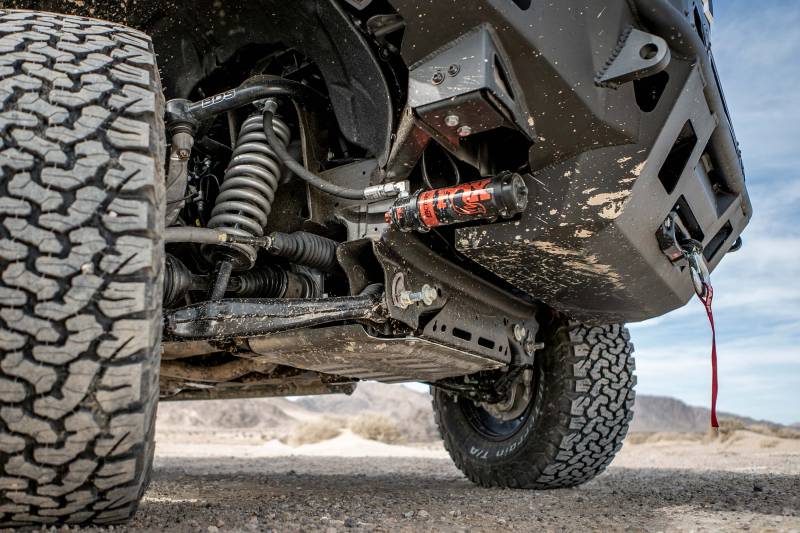

At the heart of these 3.5" systems are a pair of specially tuned FOX 2.5 factory race series DSC coilovers. These coilovers are backed by FOX's racing pedigree, preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remote reservoirs with mounting brackets. The DSC (dual speed compression) reservoir allows for easy tool-free adjustment of high-speed and low-speed compression adjustment settings to further dial in the damping to the terrain and ride preferences. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims.

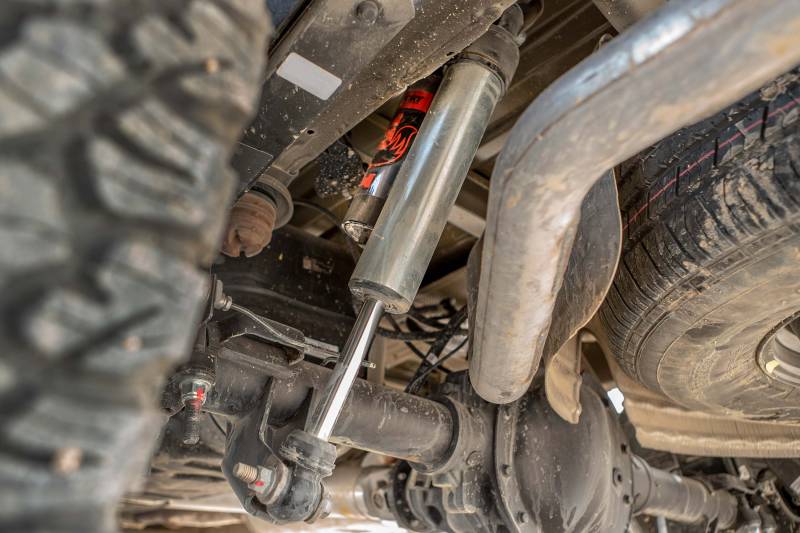

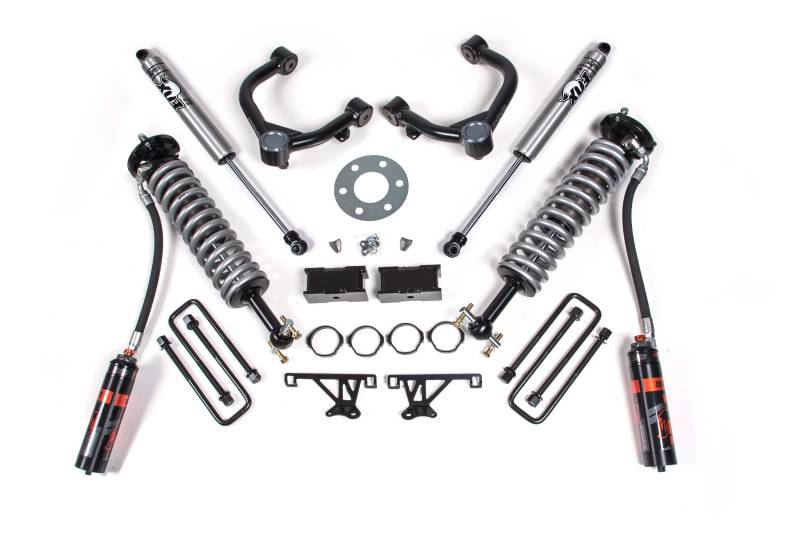

In the rear of these lift systems the factory leaf springs are retained and 2" lift comes from a replacement set of lift blocks. Also supplied for the rear of these 3.5" lift kits are your choice of FOX 2.0 performance series IFP shocks or upgraded FOX 2.5 factory series DSC adjustable shocks to match the front performance and adjustability. These kits come finished in a durable black powdercoat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions.

Important Kit Notes

• 5.5" max wheel backspacing can be used
• Will not fit Denali models with ARC
• Will fit Trail Boss/AT4 models however will net 1.5" of lift over factory ride height

• Tire & Wheel Combinations
• 35x12.50 w/20x9 and 5.5 (Chevy) back spacing
• 33x12.50 w/20x9 and 5.5 (GMC) back spacing

*Trimming may be required*

• Est. Installation: 4-5 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2019 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra
• 2020 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra
• 2021 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra

• 2022 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra
• ruck 4WD Silverado / Sierra
• 2023 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
