Additional Images

BDS 4" Radius Arm Systems for the rear air-bag equipped for 2019-2021 Dodge / Ram 3500 Truck 4WD | Gas

BDS1722H
Pricing: $2,339.98

Customize Your Item

- Shock Selection -
 * required
- Steering Stabilizers -
 * required
- Heavy Duty Adjustable Front Trac -
 * required
- RECOIL Traction Bar System -
 * required
- Carrier Bearing Drop Kit -
 * required
Qty:
Free Shipping

Description

Based on the popular BDS radius arm kits for the standard RAM HDs, these kit variants retain full functionality of the factory rear air-ride and on-road comfort while improving offroad capability

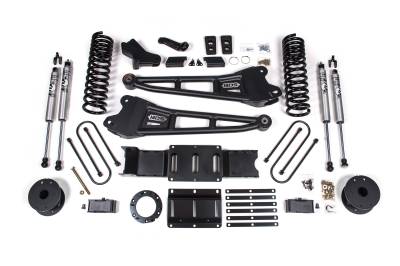

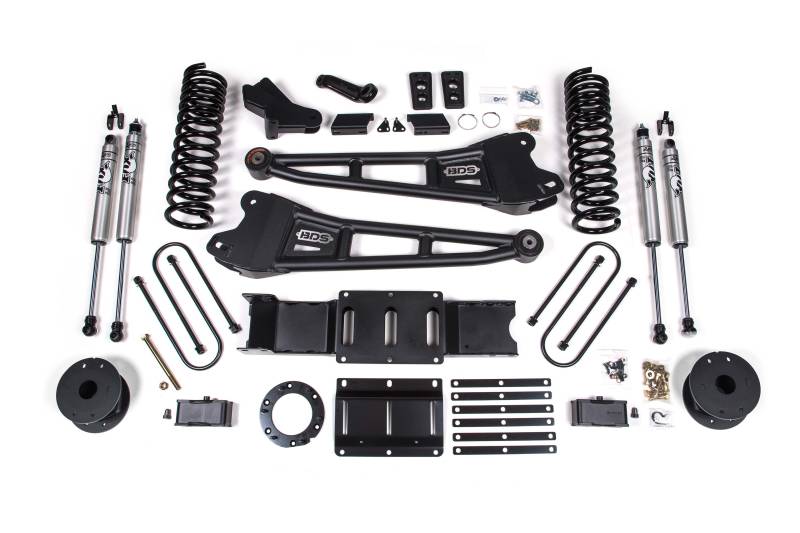

Up front these systems use a pair of progressive rate 4" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar along with extended polyurethane bump stops to correctly limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms are supplied to bolt in place of the factory arms. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.



At 4" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. In the rear, a 3" lift block and u-bolts are supplied to lift and level the stance along with a heavy duty air bag spacer brackets. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX2 series or FOX 2.0 shocks.

Important Kit Notes

  • 1. For OE Rear Air Assist only
  • 2. Does not fit mega cab dually
  • 3. T-case indexing required check vehicle before ordering
  • 4. Does not fit cab and chassis models
  • 5. If vehicle is equipped with 2 piece rear driveshaft BDS122406

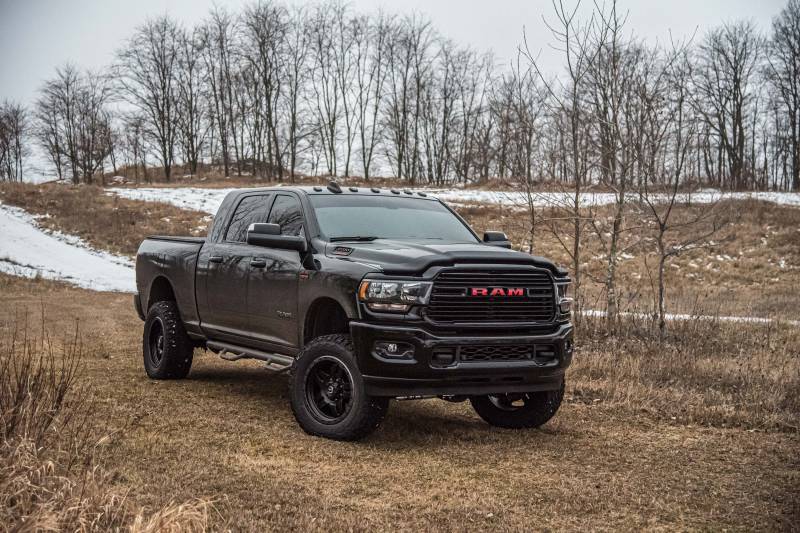

Get the look and the ride you are after with these new 4" radius arm systems from BDS Suspension.

    • Tire & Wheel Combinations
    • 37x12.50 w/20x9 and 5.625" back spacing
    • 35x12.50 w/20x9 and 4.5" back spacing

*Trimming may be required*

  • Est. Installation: 6-7 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

  • 2019 Dodge / Ram 3500 Truck 4WD w/ Rear Air-Ride
  • 2020 Dodge / Ram 3500 Truck 4WD w/ Rear Air-Ride
  • 2021 Dodge / Ram 3500 Truck 4WD w/ Rear Air-Ride

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Details

Shipping Information

  • Item Requires Shipping
  • Free Shipping
