BDS 6" 4-Link Lift Kit for 2019-2021 Dodge / Ram 3500 Truck 4WD w/o Air-Ride | Diesel

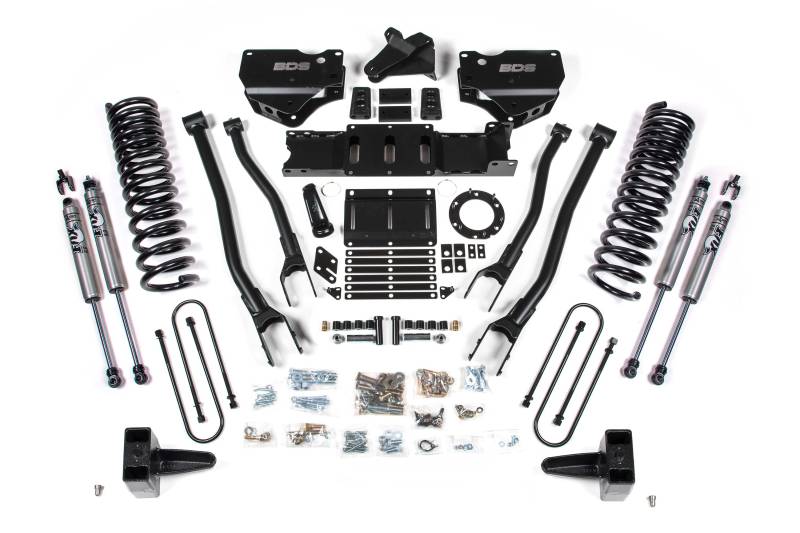

Designed to improve the looks and performance of your new RAM, these new kits join existing radius arm variants to offer improved strength and handling on/off-road. Kits include everything necessary to correctly lift them for improved offroad capability with room for larger tires while improving overall vehicle handling.

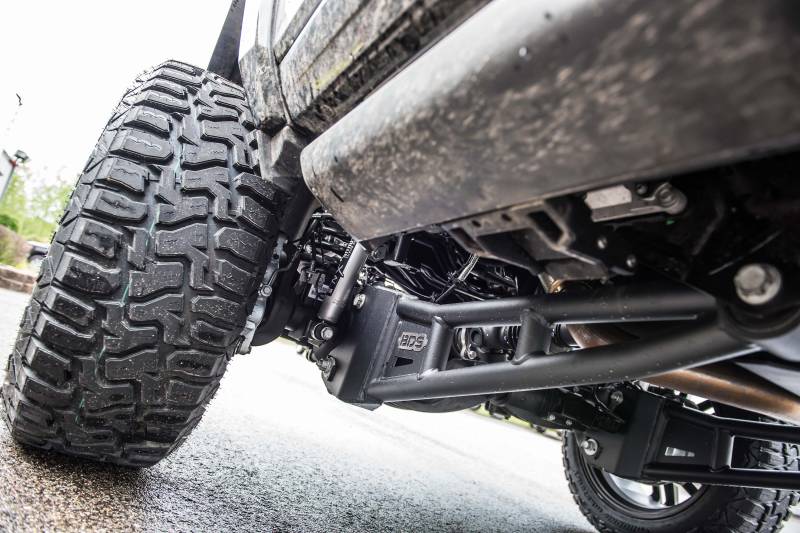

Up front these systems use a pair of diesel specific progressive rate 6? coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height the factory stamped steel radius arms are converted over to 4-link using a pair of 1/4" steel brackets and high strength upper and lower control arms designed to limit caster control throughout suspension travel for more predictable handling characteristics. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.

At 6" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. BDS offers these indexing rings for both the 6-bolt and 8-bolt equipped trucks. In the rear of the RAM 3500 kits a 5" block and u-bolt kit for a level-to-slightly tail high while maintain tow capacity. Finishing out the rear are a matching set of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks.

Important Kit Notes

• 1. T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
• 2. Will not fit Cab and Chassis models
• 3. Will NOT fit rear air-ride equipped models
• 4. Diesel models only
• 5. Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
• 6. Does not fit Dually Models with 8-bolt Transmissions (Aisin)
• 7. Does not work with manual shift transfer cases

• Tire & Wheel Combinations
• 37x12.50 w/20x9 and 4.5-5.625" back spacing
• 37x12.50 w/20x9 and 5.625" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2019 Dodge / Ram 3500 Truck 4WD w/o Air-Ride
• 2020 Dodge / Ram 3500 Truck 4WD w/o Air-Ride
• 2021 Dodge / Ram 3500 Truck 4WD w/o Air-Ride

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
