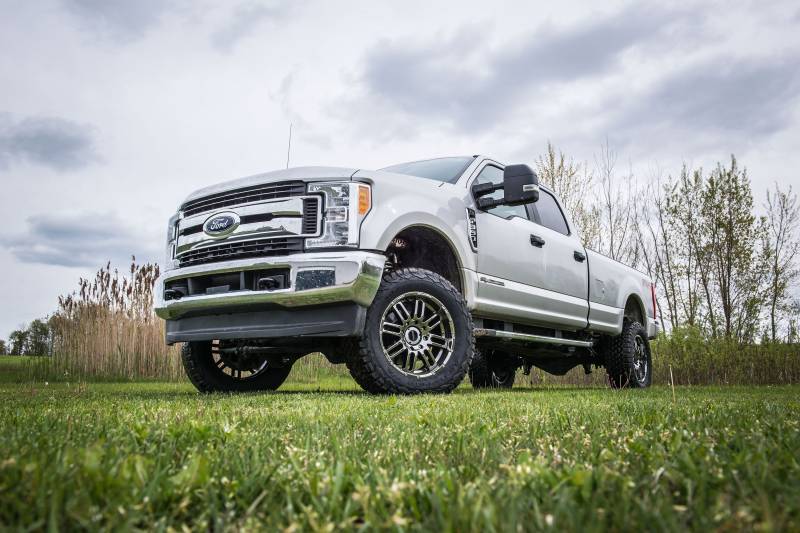

BDS 4" 4-Link Performance Elite Coil-Over Lift Kit FOR 2020-2022 Ford F250/F350 Super Duty 4WD | Diesel Only

BDS1567FPE
Pricing: $5,007.92

Customize Your Item

- Rear Lift Option -
 * required
- Stabilizer Option -
 * required
- Adjustable Front Track Bar -
 * required
- Traction Bar Selection -
 * required
- Shock Boots -
 * required
Qty:
Free Shipping

Description

DIESEL ONLY



Next level performance for your Super Duty with this PE coilover 4-link lift kit.

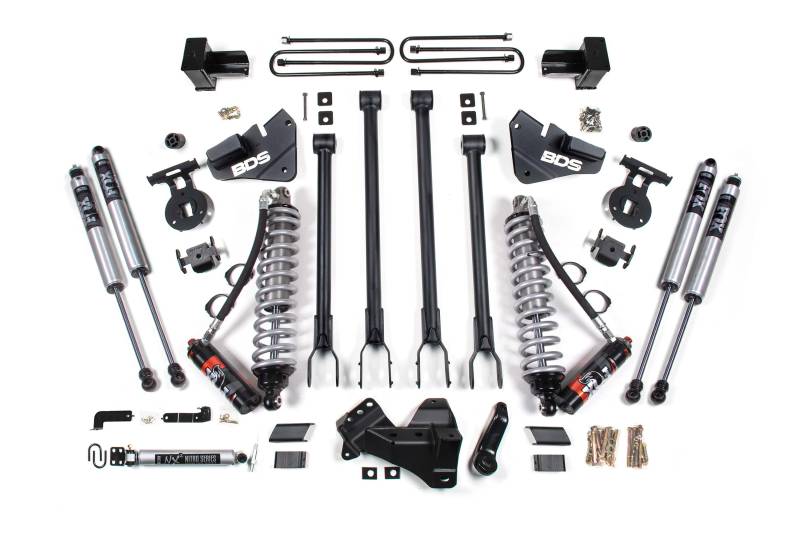

These kits are designed to improve performance and capability offroad while retaining great on-road handling. This kit builds on the standard BDS 4-link design to convert the front springs over to FOX 2.5 Performance Elite (PE) coilovers. These aluminum bodied coilovers offer improved damper performance, better heat dispersion and easy tuning via the DSC (dual speed compression) adjusters located on the reservoir allowing you to dial in the high-speed and low-speed compression settings. These coilovers come pre-tuned and full assembled to easy installation with the provided bolt-on coilover mounting brackets.



The foundation for this kit is the tried-and-true BDS 4-link conversion utilizing high strength tubular control arms and .25" steel brackets to correction positioning of the front axle, add strength and improving caster control. The kit also includes steering correction with a forged drop pitman arm along with a HD track bar bracket. Sway bar and brake line relocation brackets are utilized along with bump stop extensions. Your choice of lift solutions to lift and level out the stance in the rear. BDS designs this kit as a complete solution to transform your Super Duty to tame the any terrain. As with all BDS kits, these include Factory Protection Plus offering you a 5yr/60k-mile drivetrain warranty and no fine print warranty on the kit itself. Take your Super Duty to the next level with BDS and FOX.

Important Kit Notes

  • 1. Fits Diesel models only.
  • 2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
  • 3. If installed on a truck with a top mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) are required.
  • 4. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
  • 5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
  • 6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  • 7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
  • 8. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
  • 9. Installation requires a torque wrench capable of 405 ft-lbs.
  • 10. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
  • 11. Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)
    • Tire & Wheel Combinations
    • 37 x 12.50 w/17 x 9 and 4.5" - 5" back spacing
    • 37 x 12.50 w/18 x 9 and 4.5" - 5" back spacing
    • 37 x 12.50 w/20 x 9 and 4.5" - 5" back spacing

*Trimming may be required*

  • Est. Installation: 8-10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information

  • 2020 Ford F250/F350 Super Duty 4WD
  • 2021 Ford F250/F350 Super Duty 4WD
  • 2022 Ford F250/F350 Super Duty 4WD

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
