BDS 8" 4-Link Coil-Over Lift Kit FOR 2020-2022 Ford F250/F350 Super Duty 4WD | Diesel Only

BDS's tried and true 4-link conversion systems offer improved stability, strength and caster control during wheel travel.

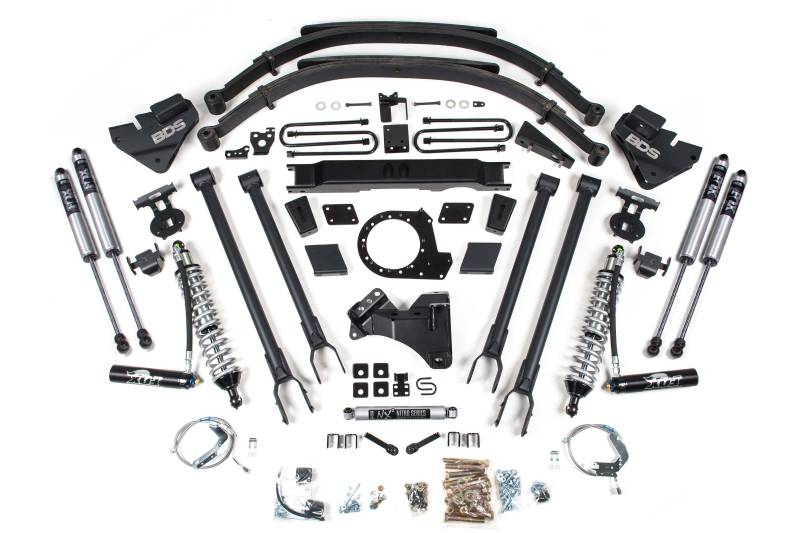

The 4-link brackets are built from 1/4" steel and key off the factory frame bracket and transmission crossmember for extra strength. This systems take performance to the next level with FOX 2.5 factory series remote reservoir coilovers. The coilovers are pre-tuned for optimal performance and are include DSC adjustment. These bolt into place using the supplied mounting brackets and pair with a set of FOX 2.0 performance series gas shocks. A forged drop pitman arm and heavy duty track bar relocation bracket are supplied to correct steering angles and recenter the front axle. Also supplied for the front are bump stop extensions to control suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets.

BDS supplies a high strength transfer case indexing ring to rotate the front output of the transfer case down to correct the front driveline operating angle at the new lift height. The indexing ring uses ARP studs and includes new mounting hardware. Also supplied is a heavy duty replacement transmission crossmember to create additional clearance.

The rear is lifted with full replacement BDS Glideride leaf springs to provide the lift needed to level the stance. These springs are a 4-leaf design with integrated overload leaf for extra load capacity. They come fully assembled with bushings installed for ease installation and a smooth ride on and off-road. Finishing off the rear of this kit are a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance. Allows for clearance of up to 40" tires with some trimming required. Take your Super Duty to the next level with BDS Suspension.

Important Kit Notes

• 1. If equipped with a 2-piece rear driveshaft, a carrier bearing drop kit may be required (BDS123402)
• 2. Designed for Diesel models only
• 3. If your truck is equipped with a factory rear sway bar add BDS123009

• Tire & Wheel Combinations
• 40x13.50 w/20x9 and 4.5" back spacing
• 38x13.50 w/20x9 and 4.5" back spacing

*Trimming may be required*

• Est. Installation: 6-7 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2020 Ford F250/F350 Super Duty 4WD
• 2021 Ford F250/F350 Super Duty 4WD
• 2022 Ford F250/F350 Super Duty 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
