BDS 2" Snap Ring Leveling Kit FOR 2015-2020 Ford F150 4WD

Improve the look and capability of your F150 with these new 2" coilover leveling systems from BDS Suspension

BDS 2" performance coilover systems improve not only the stance of your truck, but drastically improves the ride quality and offroad capability.

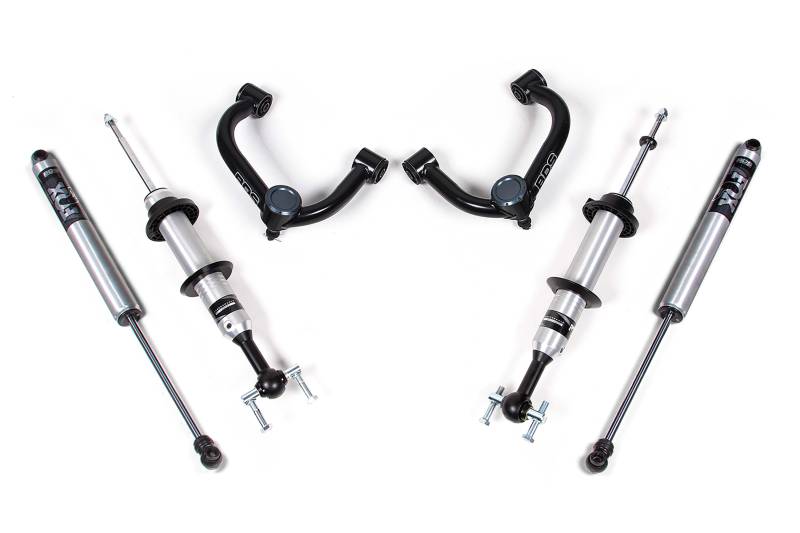

Designed to be so much more than just a "leveling kit", these new coilover systems take advantage of the factory suspension geometry without overextending operating angles and offer next level performance in a smaller lift package. At the heart of these 2" leveling kit are a pair of specially tuned FOX 2.0 performance series snap ring coilover struts. These non-reservoir coilover struts have preset preload snap rings designed to adjust right height when used with the factory spring and top plate. Once assembled they are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation.This kit takes performance for the next level by upgrading to FOX 2.0 performance series. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims.

Important Kit Notes

• Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
• Will not fit HD models (7 lug).

In the rear of these lift systems the factory leaf springs are retained to result in a level stance in no change in tow/load capacity. A pair of FOX 2.0 performance series IFP shocks are supplied to match the front performance.

• Tire & Wheel Combinations
• 35x12.50 w/20 x 9 and 5.5" back spacing
• 33x12.50 w/20 x 9 and 5.5" back spacing

*Trimming may be required*

• Est. Installation: 3 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2014 Ford F150 4WD
• 2015 Ford F150 4WD
• 2016 Ford F150 4WD
• 2017 Ford F150 4WD
• 2018 Ford F150 4WD
• 2019 Ford F150 4WD
• 2020 Ford F150 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
