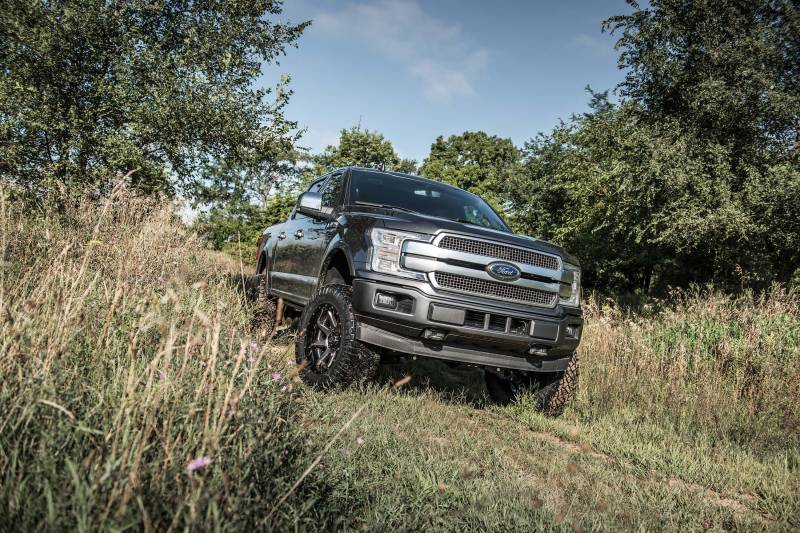

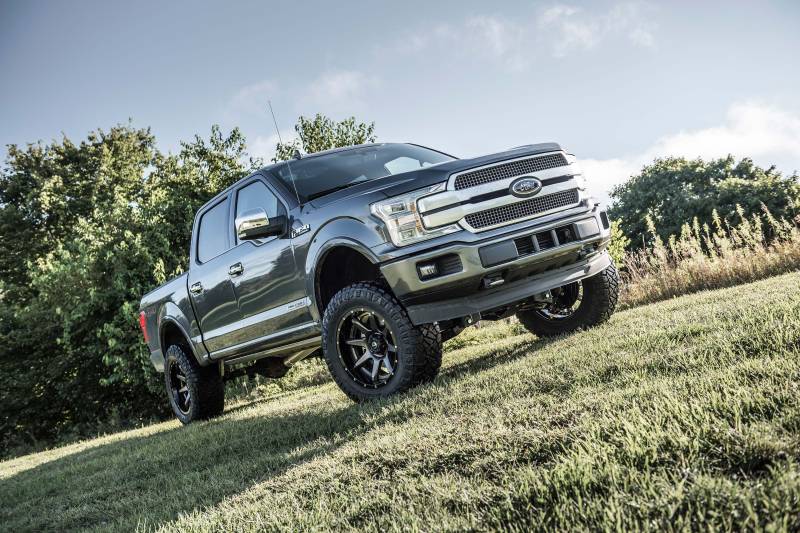

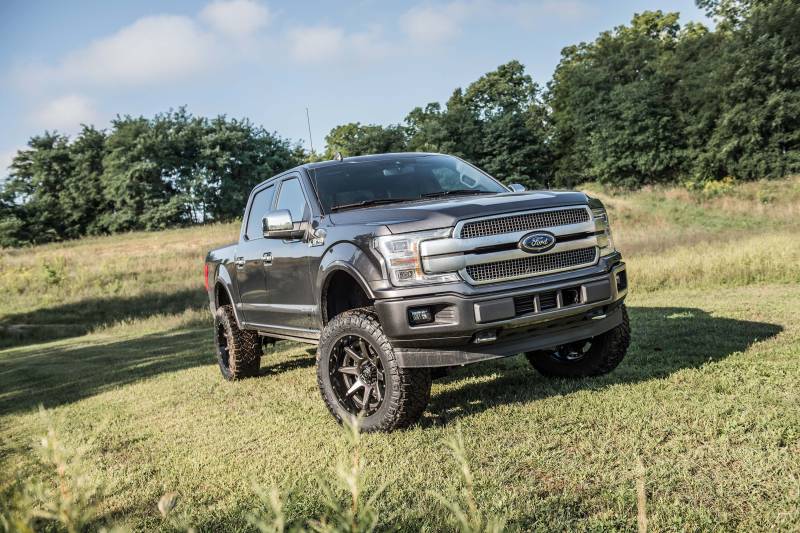

BDS 6" Perfomance Elite Coil-Over Lift Kit FOR 2015-2020 Ford F150 4WD

BDS1532FPE
Pricing: $4,548.02

Customize Your Item

- Rear Shocks Selection -
 * required
- Upper Control Arms -
 * required
- Carrier Bearing Drop Kit -
 * required
- RECOIL Traction Bar System | For -
 * required
Qty:
Free Shipping

Description

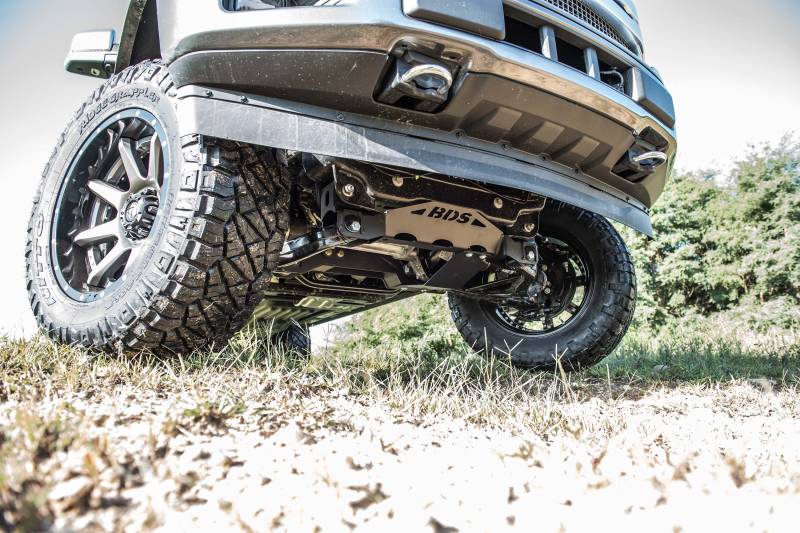

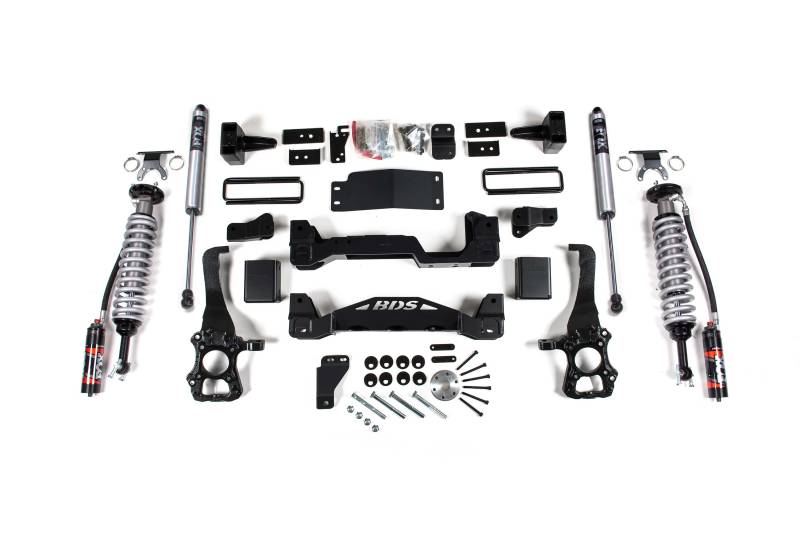

High Clearance Coilover Systems for Ford F150 4WD trucks featuring FOX Performance Elite shocks



These PE coilover systems join the current lineup offering improved performance and capability. These kits are based around the tried and true high clearance technology that has made BDS the go to for GM suspension lifts, designed from the ground up to get the more out of your truck with the most ground clearance on the market. While some companies build "kits" to fit larger tires, BDS Suspension prides itself in engineering complete suspension systems designed to take your vehicle's performance to the next level while retaining OE-level functionality.



At the heart of these systems are a pair of precision tuned FOX 2.5 performance elite series coilovers engineered to outperform on and offroad as they soak up the terrain. These coilovers are preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless aluminum body for better heat dispersion, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs optional DSC (dual speed compression) adjustment technology built in. DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail. A pair of reservoir mounting brackets are supplied to position the reservoirs. Complimenting the coilovers, BDS utilizes a pair of specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with a high strength differential skid plate to create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multipoint relocation bracket system tying into the frame and control arm pockets to further secure the front differential to keep CV axle angles at a minimum. A billet aluminum front driveshaft spacer is also supplied along with longer hardware to allow the reinstallation of the factory driveshaft. A pair of BDS-branded sway bar drop brackets used to correct the operating angle of the factory sway bar as well as created a strong brace between the rear crossmember and the frame. Rounding out the front of this kit are new lower control arm cam bolts to allow alignment and a weld-in frame reinforcement plate for extra strength.

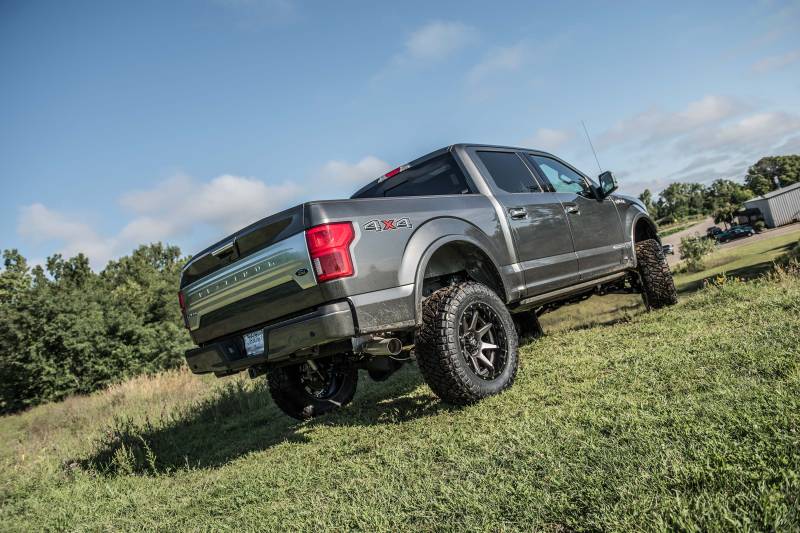

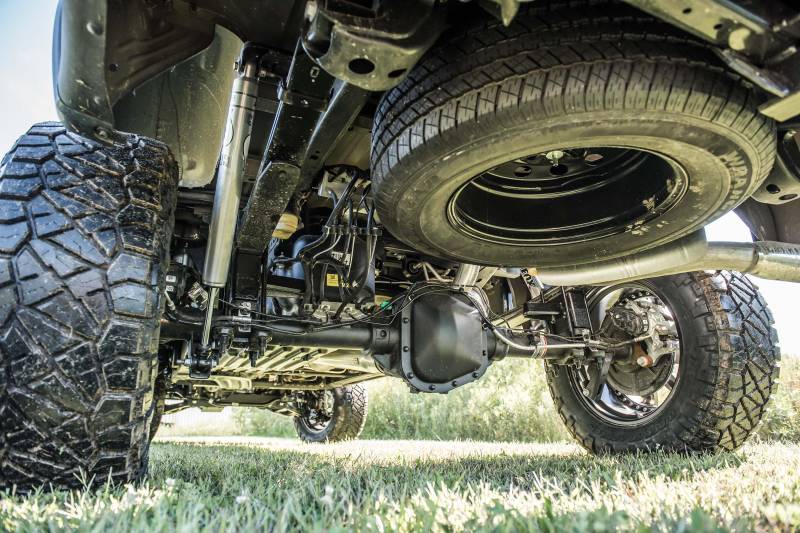

In the rear of this performance lift kit, the factory block is replaced with a tall lift block and longer u-bolts to lift and level the stance. Also included, BDS supplies brake line and ABS line brackets allow the use of factory brake lines. Rear damper capacity is improved by your choice of specially tuned FOX 2.0 IFP Performance Series gas shocks or upgrade to the FOX 2.5 Performance Elite Series shocks with remote DSC reservoir to match the front performance. All kits come finished in a durable textured black powder coat and sent with all hardware packs to complete the install along with step-by-step installation instructions.

Important Kit Notes

  • 1. Requires frame bracket modification.
  • 2. 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 3. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • 4. The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance.
  • 5. Will not fit HD models (7 lug).
    • Tire & Wheel Combinations
    • 37" x 12.50" w/20x9 and 5-5.5" back spacing
    • 37" x 12.50" w/18x9 and 5" back spacing
    • 35 x 12.50 w/18x9 and 5" back spacing

*Trimming may be required*

  • Est. Installation: 8-10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information

  • 2015 Ford F150 4WD
  • 2016 Ford F150 4WD
  • 2017 Ford F150 4WD
  • 2018 Ford F150 4WD
  • 2019 Ford F150 4WD
  • 2020 Ford F150 4WD

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
