BDS 3-4" Spacer Kits w/UCA FOR 2021-2022 Ford Bronco 2 Door

Lift and level your new Bronco with BDS.

023411 4" Kit (2Dr - base shock package)

023351 - 3.5" Kit (2Dr - Badlands w/o Sasq)

023301 - 3" Kit (2Dr - w/ Sasquatch)

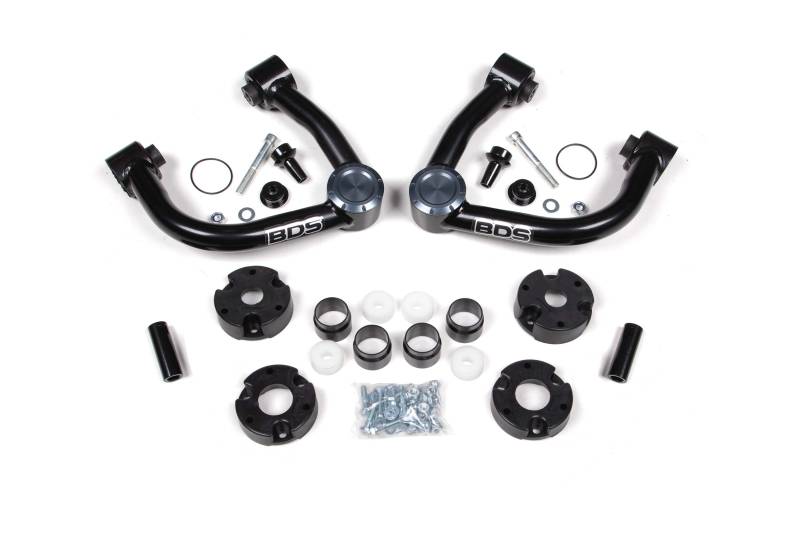

Designed to not only provide additional ride height, this 3-4" BDS lift kit for Bronco and comes complete ready to perform right out of the box. The 2-piece strut spacer design maintains ride quality without overextending suspension during down travel. Also supplied are a bump stop extensions to install on each of the struts to properly limit uptravel when pushing the limits with your new Bronco. To take advantage of the suspension travel a pair of BDS performance series upper control arms (UCAs) with FK uniball joints are supplied to bolt into the factory location. Built from 1.5" OD heavy wall tubing with fully welded with integrated support gussets, these UCAs improve suspension travel while providing superior strength, clearance, and styling to the stock arms specially formed to optimize tire clearance. To provide a full solution for your Bronco, a pair of heavy duty tie rod reinforcements sleeves are also include to ensure piece of mind while you're pushing your Bronco to the limit out on the trail. These kits are spec'd to allow clearance for 35-37" tires, however 37s will require modification to the factory intrusion beams (aka the crash bars).

Get your Bronco lifted with BDS Suspension.

Important Kit Notes

• ** 35" Tires | 5" Backspacing recommended for clearance through full wheel travel.
• * 37 Tires | Will rub front body mount through wheel travel, trimming may be required
• ** 35" Tires | 5" Backspacing recommended for clearance through full wheel travel.
• * 37 Tires | Will rub front body mount through wheel travel, trimming may be required
• 1. Replacement COM joints service kits are available:
• BDS083204 service kit includes (1) COM joint and (1) snap ring.
• BDS083203 service kit includes (1) COM joint, (1) snap ring, (1) upper misalignment, (1) lower misalignment, and (1) cap.
• BDS073201 service kit includes (2) rubber bushings.
• 2. Will not work with models with a height sensor attached to the UCA.
• 3. A BASE model is considered a Bronco with struts that are BLACK from the factory. Base, Big Bend, Black Diamond, and Outer Banks all come standard with BLACK struts.
• 4. A BADLANDS model is considered a Bronco with struts that are Yellow from the factory with the reservoir pointing upwards. A Badlands is its own specific model with its own specific suspension package.
• 5. A SASQUATCH model is considered a Bronco with struts that are Yellow from the factory with the reservoir pointing downwards. Any model can be OPTIONED to a Sasquatch package. Sasquatch is STANDARD on Wildtrack, Everglades, and First Edition. A Badlands WITH Sasquatch is a SASQUATCH suspension package.
• 6. Net lift height will vary based on OE shock package (4" on base shocks, 3.5" badlands models, and 3" on Sasquatch package)
• 7. 023300 & 023301 can be used ONLY with Sasquatch Suspension Package vehicles. This kit is designed to lift the front of the vehicle 3" and rear 2".
• 8. Although 37" x 12.50 will work at ride height, the tires will still contact the front body mount and possibly rear inner fender through wheel travel and steering lock to lock. If running this size tire and using the full suspension travel, these areas must be addressed.
• 9. Tie rod end sleeve is designed for use on stock inner tie rod ends. Will not work with larger aftermarket inner tie rod ends.
• 10. The tie rod end sleeve will cover the threads / adjuster section of the inner tie rod to strength a potential weak point of the tie rod. With this the adjustment of the inner tie rod becomes abnormal for a standard alignment shop. To adjust the inner tie rod, depending upon how much of the inner tie rod is showing, remove the clamp on the inner boot and push the boot up towards the steering rack. The inner tie rod can now be turned in order to adjust the toe.
• 11. Not compatible with HOSS 3.0 or Raptor Models.
• 12. Does not fit Bronco Sport models.

• Tire & Wheel Combinations
• 37x12.50* w/17x9 and 4.5-5.5" back spacing
• 35x12.50** w/17x9 and 5-5.5" back spacing

*Trimming may be required*

• Est. Installation: 5-7 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2021 Ford Bronco 2 Door
• 2022 Ford Bronco 2 Door

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
