BDS 4" Radius Arm Performance Elite Coilover Lift Kit | Diesel Only FOR 2020-2021 Ford F350 Super Duty DRW 4WD

BDS1563FPE
Pricing: $4,546.87

Customize Your Item

- Radius Arm Color -
 * required
- Steering Stabilizers -
 * required
- RECOIL Traction Bar -
 * required
- Adjustable Front Track Bar -
 * required
- Driveshaft Alignment Kit -
 * required
- Anti-Sway Bar Link Kit -
 * required
- U-Bolt -
 * required
- Shock Boots -
 * required
Qty:
Free Shipping

Description

Next level performance for your Super Duty with this PE coilover radius arm lift kit.

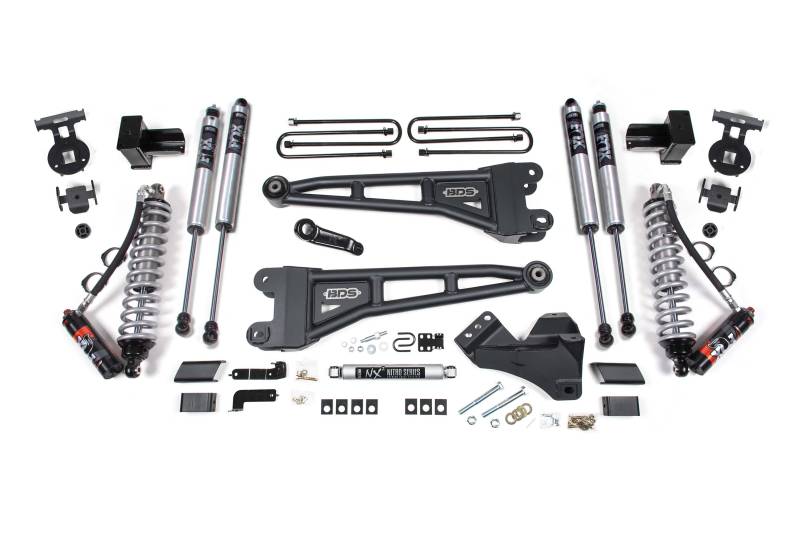

These kits are designed to improve performance and capability offroad while retaining great on-road handling. This kit builds on the BDS radius arm design to convert the front springs over to FOX 2.5 Performance Elite (PE) coilovers. These aluminum bodied coilovers offer improved damper performance, better heat dispersion and easy tuning via the DSC (dual speed compression) adjusters located on the reservoir allowing you to dial in the high-speed and low-speed compression settings. These coilovers come pre-tuned and full assembled to easy installation with the provided bolt-on coilover mounting brackets.



The foundation for this kit is the tried-and-true BDS radius arm lift kit that utilizes high strength tubular gusseted radius arms to correction front axle positioning, add strength and increase ground clearance. The kit also includes steering correction with a forged drop pitman arm along with a HD track bar bracket. Sway bar and brake line relocation brackets are utilized along with bump stop extensions. Fox 2.0 Performance Series shocks and your choice of lift solutions to lift and level out the stance in the rear. BDS designs this kit as a complete solution to transform your Super Duty to tame the any terrain. As with all BDS kits, these include Factory Protection Plus offering you a 5yr/60k-mile drivetrain warranty and no fine print warranty on the kit itself. Take your Super Duty to the next level with BDS and FOX.

Important Kit Notes

  • Removal of the factory leaf spring block required. Net rear lift will vary depending on height of factory block, but will result in a level stance.
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • Front exhaust modification may be required to clear front drive shaft (Gas Only)
  • Torque wrench capable of 405 ft-lbs required.
  • 37 x 12.50 tires may require minor trimming.
    • Tire & Wheel Combinations
    • 37x12.50 w/17x9 and 4.5"-5" back spacing
    • 37x12.50 w/18x9 and 4.5"-5" back spacing
    • 37x12.50 w/20x9 and 4.5"-5" back spacing

*Trimming may be required*

  • Est. Installation: 6-8 hours
  • Difficulty Level (easy 1 - 5 complicated): 5

Vehicle Fitment Information

  • 2020 Ford F350 Super Duty DRW 4WD
  • 2021 Ford F350 Super Duty DRW 4WD

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
