OEM AAM 12 Bolt 9.25" 1485 Front Axle U-Joint KIT W/ Hardware | 03-09 Dodge Ram Front

AAM 74110001 WHEEL JOINT KIT

Fits 2003, 2004, 2005, 2006, 2007, 2008, 2009 DODGE RAM 2500/3500 Front Axles

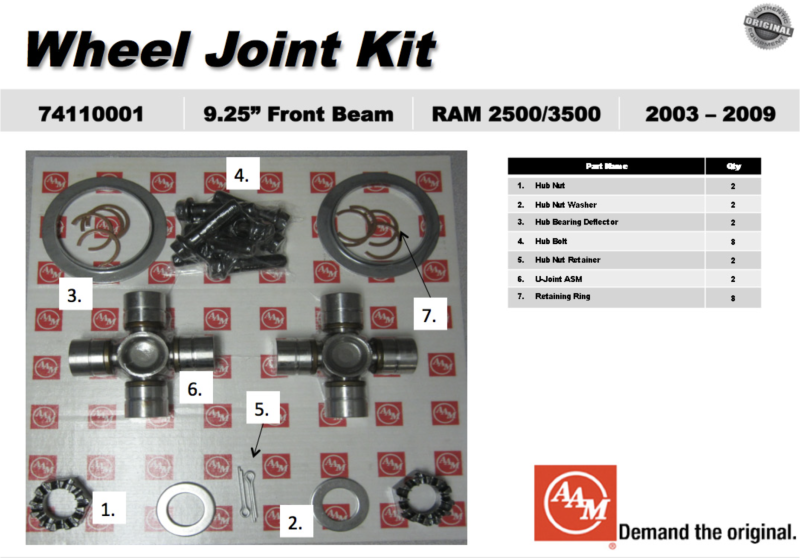

• Kit Contains PARTS FOR BOTH RIGHT AND LEFT AXLES
  • (2) 74081485 Axle 1485 series Axle U-joints with snap rings
  • (2) 40010627 Axle Nuts
  • (2) 40010628 Axle Washers
  • (2) 40011848 Outer Axle Dust Shield/Deflectors
  • (2) 40021280 Cotter pins
  • (8) 40011986 Hub Bolts

1485 series American Axle Manufacturing U-Joint Kit

• OE Part Numbers 05127822AB, 5102157AE

• Fits 2003, 2004, 2005, 2006, 2007, 2008, 2009 DODGE RAM 2500/3500 Front Axles
  • INSIDE "C" Clips to be used in 1485 series Front Axles

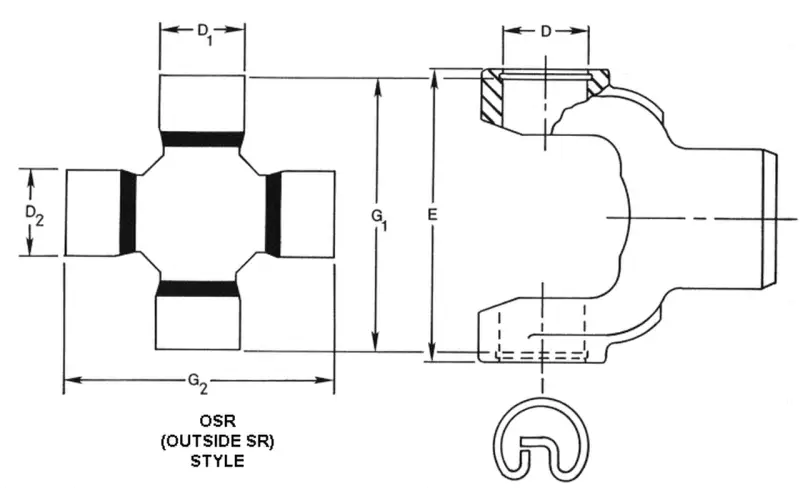

  • A = 2.920 inches = The span between the yoke inner surfaces where the "C" Clips lock in.
  • B = 2.920 inches = The span between the yoke inner surfaces where the "C" Clips lock in.
  • C = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
  • D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.

• Kit Contains PARTS FOR BOTH RIGHT AND LEFT AXLES

  • (2) 74081485 Axle 1485 series Axle U-joints with snap rings
  • (2) 40010627 Axle Nuts
  • (2) 40010628 Axle Washers
  • (2) 40011848 Outer Axle Dust Shield/Deflectors
  • (2) 40021280 Cotter pins
  • (8) 40011986 Hub Bolts
