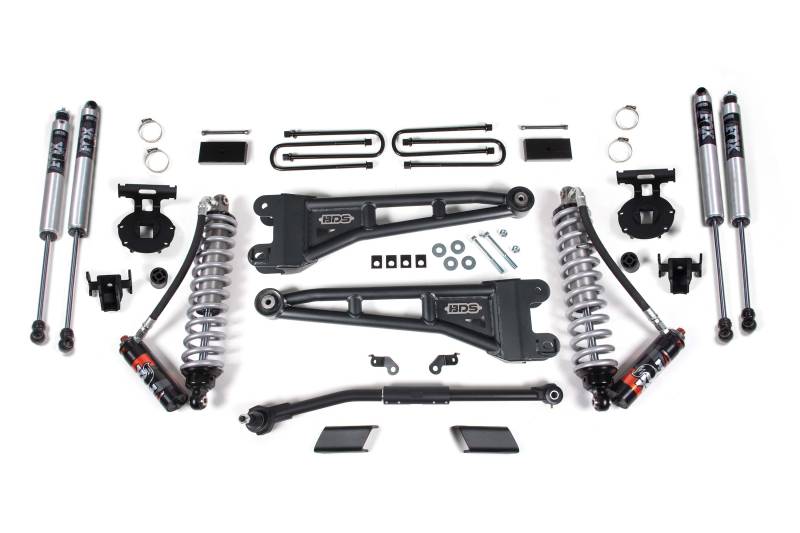

BDS 3" Performance Elite Radius Arm Coilover Lift Kit FOR 2023 Ford F250/F350 Super Duty 4WD

BDS2201FPE
Pricing: $4,620.64

Customize Your Item

- Steering Stabilizers -
 * required
- Traction Bars -
 * required
- U-Bolt -
 * required
Qty:
Free Shipping

Description

Next level performance for your Super Duty with this 3" coilover conversion lift kit.



These kits are designed to improve performance and capability offroad while retaining great on-road handling. This kit builds on the BDS radius arm design to convert the front springs over to FOX 2.5 Performance Elite (PE) coilovers. These aluminum bodied coilovers offer improved damper performance, better heat dispersion and easy tuning via the DSC (dual speed compression) adjusters located on the reservoir allowing you to dial in the high-speed and low-speed compression settings. These coilovers come pre-tuned and full assembled to easy installation with the provided bolt-on coilover mounting brackets.



The foundation for this kit is the tried-and-true BDS radius arm lift kit that utilizes high strength tubular gusseted radius arms to correction front axle positioning, add strength and increase ground clearance. The kit also includes a HD adjustable track bar to recenter the front axle, sway bar relocation brackets, bump stop extensions, rear block & u-bolt kit along with FOX 2.0 Performance Series shocks at each corner. BDS designs this kit as a complete solution to transform your Super Duty to tame the any terrain.

Important Kit Notes

  • 1. Designed for use on diesel models, but can be installed on gas trucks.
  • 2. Will achieve additional 3/4" front ride height.
  • 3. Installation requires a torque wrench capable of 406 ft-lbs.
  • 4. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  • 5. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
  • 6. Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.



Take your Super Duty to the next level with BDS and FOX.

    • Tire & Wheel Combinations
    • 35" x 12.50 w/17 x 9 and 4.5-5" back spacing
    • 35" x 12.50 w/18 x 9 and 4.5-5" back spacing
    • 35" x 12.50 w/20 x 9 and back spacing

*Trimming may be required*

  • Est. Installation: 4-5 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

  • 2023 Ford F250/F350 Super Duty 4WD

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
