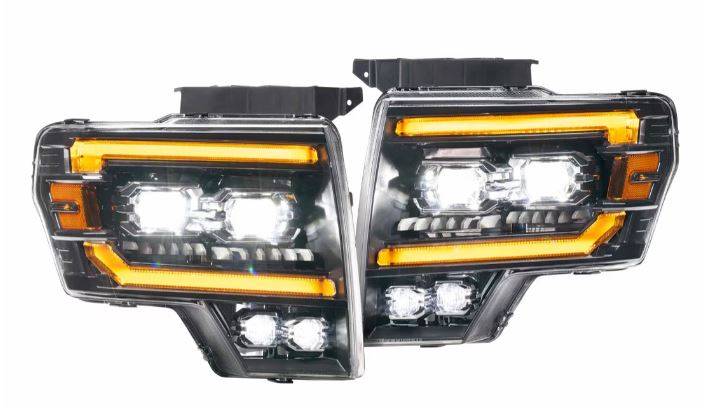

Morimoto XB Evo LED Headlights for 09-14 Ford F-150

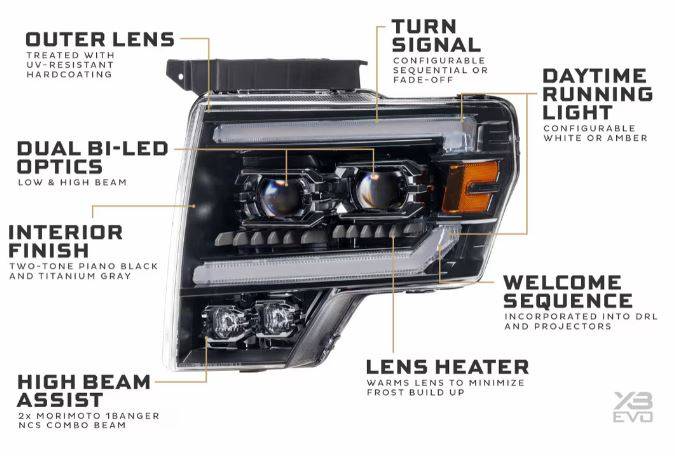

• XB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

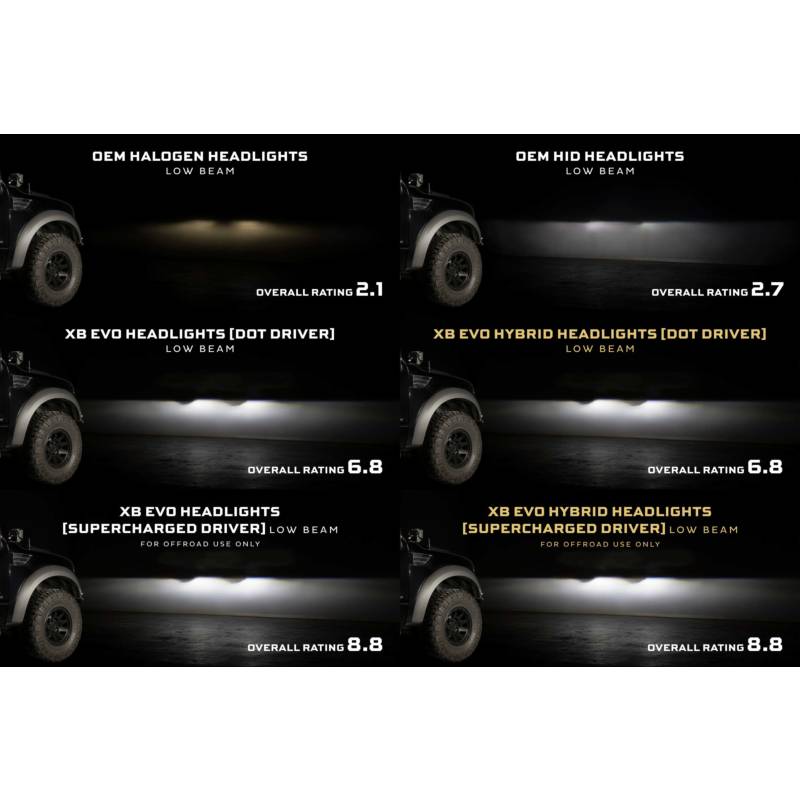

• All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XB Evo.
• On and Off Road: Meets DOT compliance standards for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30-50%, making them the brightest option for F-150 owners who want to maximize output for off-road use.
• Frost-Free System: Warms the lens surface to prevent frost buildup during wet and snowy conditions in winter. Activated by flashing the high beams four times when the temperature drops below 5C / 41F, this ensures consistent headlight performance in cold climates.
• Signal Swap Keys: Enable users to personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
• Designed, Engineered, and Tested: In the USA by Morimoto, the XB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

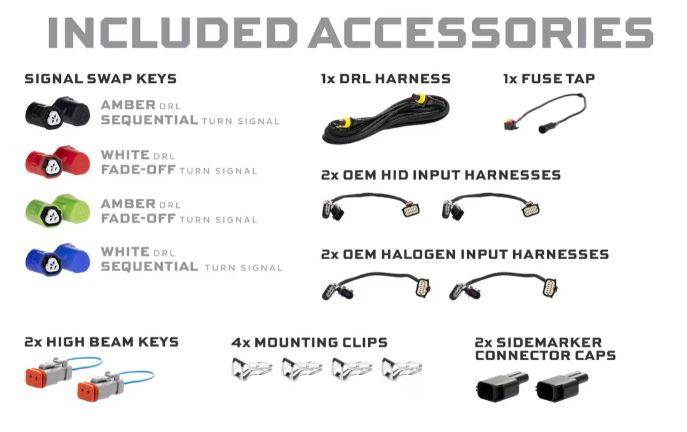

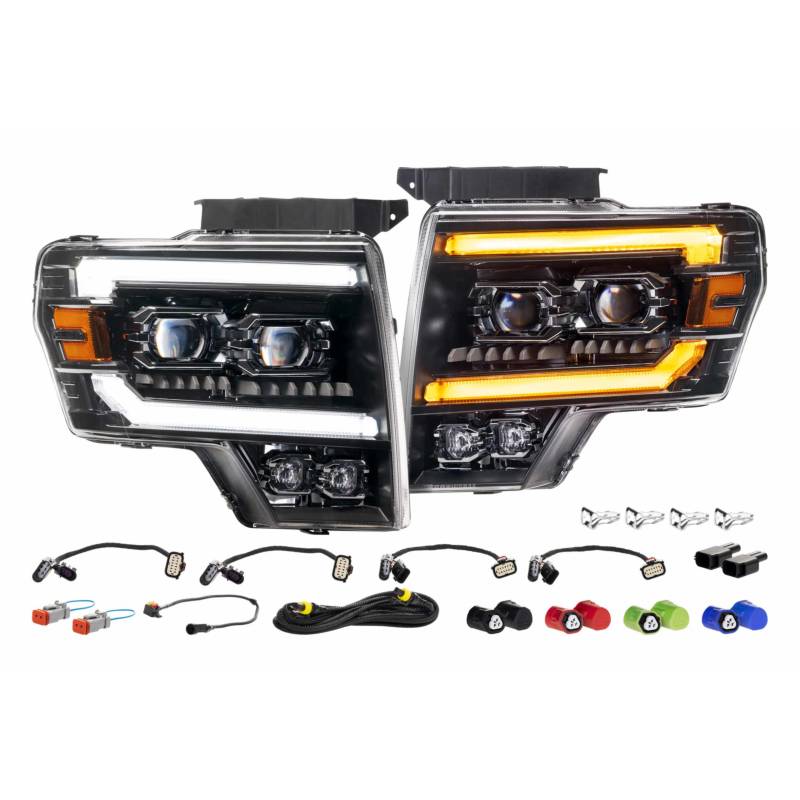

WHAT’S INCLUDED

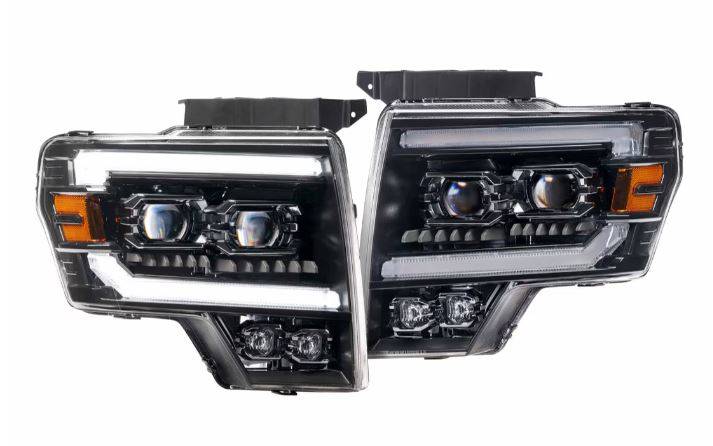

• Headlights: 1x Passenger Side / RH XB Evo Headlight, 1x Driver Side / LH XB Evo Headlight

• Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings

• Accessories: 2x Halogen Adapters, 2x OEM HID Adapters, 1x DRL Harness, 2x High Beam Keys, 4x Mounting Clips, 2x Side Marker Connector Caps, Fuse Tap Hardware

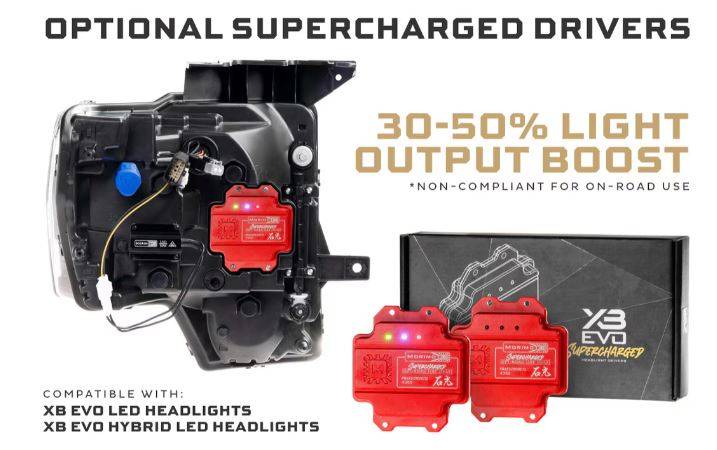

• Optional Supercharged Drivers: LF2-DRVSC12 Drivers

• Optional Protective Film: Lamin-X Clear Film custom fit for LF2-506

TECHNICAL SPECIFICATIONS

• Traffic Pattern: LHD / Right Hand Traffic Only

• Output (Standard Drivers): DOT / FVMSS108 Compliant (LB2V and UB2)

• Output (Supercharged Drivers): +30-50% (Non-Compliant)

• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

• High Beam Assist: 2x Morimoto 1Banger NCS Combo Beam*

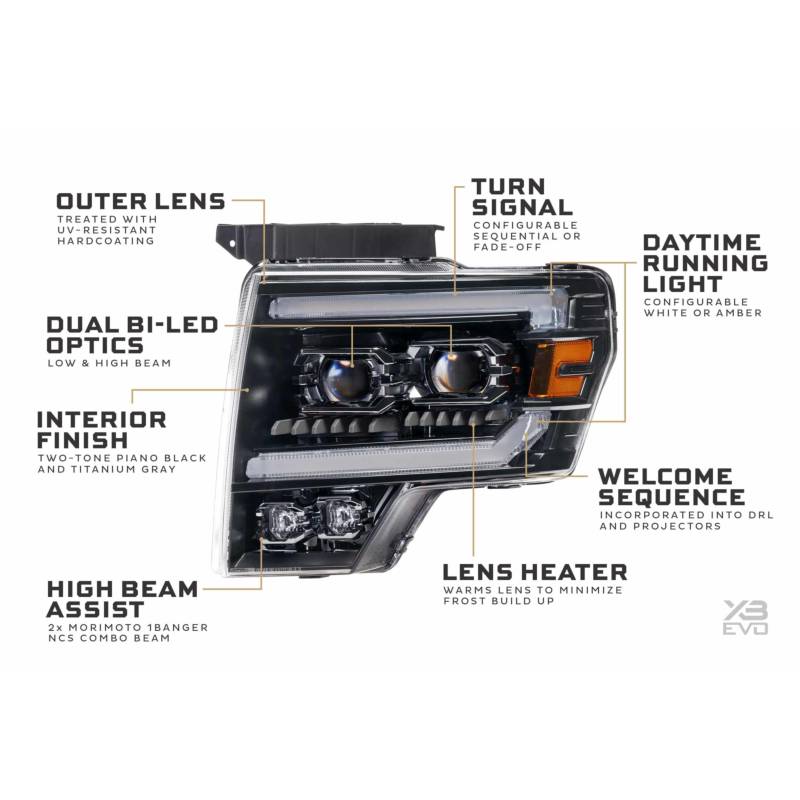

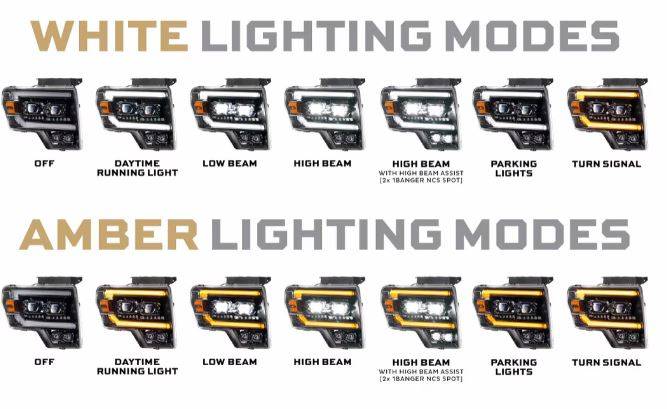

• Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating

• Turn Signal Modes: Sequential or Fade Off (Configurable)

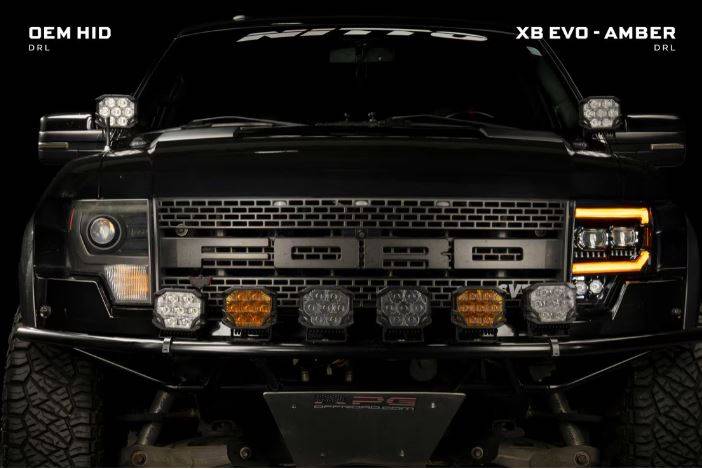

• DRL Colors: White or Amber (Configurable)

• DRL/Signal Optics: Glass-like 3D Optics

• Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans

• Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures

• Side marker: Amber side reflex reflector (DOT compliant)

• Wiring: Adapters Included for OEM Halogen and OEM HID inputs

• Lens Details: Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark)
