ARB AIR LOCKER Toyota Land Cruiser 9.5", 30 Spline, Semi Float

ARBRD153
Pricing: $999.00

Customize Your Item

- Compressor System -
 * required
- Tire Inflation Kit -
 * required
- EZ Tire Deflator -
 * required
- Heavy Duty Air Line Kit -
 * required
Qty:
Free Shipping

Description

Toyota 9.5"

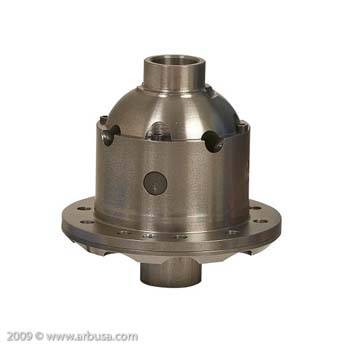

ARB 153 Air Locker


Differential: Toyota 9.5", Semi-Float Axles
Gear Ratio: All
Axle Splines: 30
Ring Gear Bolts: 12 (not included)
Manufacturer: ARB
Warranty: 5 Years

Also works with Full Float 9.5" vehicles.

"With our improved two piece design available right across the range, along with the addition of forged gears and an industry leading five year warranty, ARB Air Lockers are now better built and better backed than ever before.

Created to provide 100% traction on demand, without sacrificing any of your vehicle's highway driving performance, ARB Air Lockers employ a 12 volt ARB Air Compressor designed to activate (and deactivate) a solid and durable locking mechanism inside the differential. This gives you the traction you need, when you need it, all at the flip of a switch and all within the comfort of the driver's seat.

The advantage of the ARB Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional 'open' differential.

In addition to providing outright improvements to a 4x4's off road capabilities, the Air Locker offers significant environmental benefits. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact."

Features & Benefits:
5 Year Warranty*
Provides 100% traction on demand without affecting on road drivability or driveline wear.
Vastly improved traction means less reliance on momentum, which reduces the likelihood of vehicle damage and environmental impact.
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver s seat.
Ultra durable and extremely strong - only the highest quality materials used in construction.
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability.
Thoroughly tested and proven design trusted and used in over 80 countries around the world.
Front and rear Air Lockers available for most makes and models.
4WD & 2WD applications.
Easy installation and maintenance no special tools, skills or additives required.

Vehicle Type

Vehicle Applications:
1990-1997 Toyota Landcruiser HDJ80/81
1990-1997 Toyota Landcruiser HZJ80/81
1993-1997 Toyota Landcruiser FZJ80/81
1990-1992 Toyota Landcruiser FJ80
1984-1998 Toyota Landcruiser BJ/HJ70 & BJ/HJ75
1969-1983 Toyota Landcruiser FJ/BJ40 & FJ/HJ45
1968-1979 Toyota Landcruiser FJ55
1981-1987 Toyota Landcruiser FJ60/61 BJ60 HJ60/61
1988-1990 Toyota Landcruiser FJ62

Tech Notes: This locker is compatible with all of the semi float c-clip rear axles!
