BDS Suspension 6" Lift Kit for 1973 - 1976 GM 4WD K5 Blazer/Jimmy, K10 / K15 1/2 ton Suburban and pickup truck   -115H

BDS115H
Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.
Was: $996.93
Sale: $947.08
Save: 5%
Save: $49.85

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Spring Eye Bolts -
 * required
- We also recommend -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

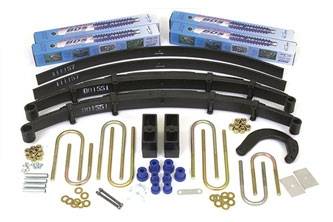

This lift kit includes new u-bolts, urethane spring bushings, and brake line relocation brackets. A 4" steering arm is included to help correct the steering geometry.

Rear lift options include 4" tapered blocks with an add-a-leaf or Glide-Ride leaf springs.

Features

  • Important Kit Notes

    • 1. The 1/2 ton commonly came with a factory 52" eye to eye rear leaf spring. However, some were produced with a 56" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
    • 2. If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 36" x 13.50" w/15 x 8 and 3-1/2" back spacing
    • Est. Installation: 5 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1973 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1974 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1975 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1976 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1973 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1974 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1975 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1976 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1973 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1974 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1975 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1976 Chevy / GMC Suburban 1/2 Ton 4WD
