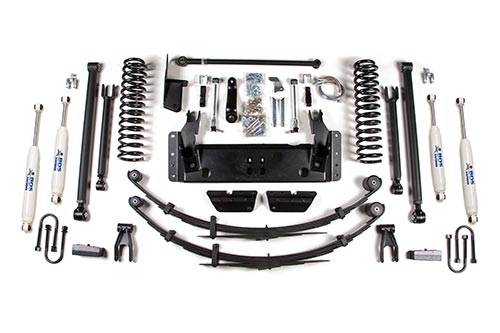

BDS Suspension 8-1/2" Long Arm Lift Kit for 1987 - 2001 Jeep Cherokee XJ - 1434H

BDS1434H
Pricing: $3,122.47

Customize Your Item

- Skid Plate -
 * required
- Front Control Arm Skid Plates -
 * required
- Shock Boot Selection -
 * required
- Year Range Selection -
 * required
- Shock Options -
 * required
- Rear Axle -
 * required
- Steering Stabilizer Options -
 * required
Qty:
Free Shipping

Description

The BDS 8.5" XJ Long Arm system provides the best on and offroad capability you could ask for and is designed to clear 33x12.50's with room to flex. By maximizing the length of both the upper and lower control arms, BDS has minimized caster change for optimum handling and minimized road forces transmitted ultimately to your seat for the best ride. To give you some idea, the lower arms are nearly bottomed out at just over 32" and the uppers at just over 28". This is about double the length of the factory control arms!

Although this XJ long arm system makes for a great daily driver, the true abilities of this system won' t be appreciated until you hit the rocks, dirt and mud. The 4-Link design maintains better axle control through wheel travel than any radius arm system because the upper to lower link relationship is not fixed, yet is tuned for optimum performance based on link length and operating angles. The control arm geometry is setup with the massive belly pan that incorporates the link mounts and is built to smash rocks. No welding to the uni-body is required nor recommended.

BDS Pro-Ride Coil Springs, built from 5160 spring steel & pre-set to withstand full coil bind with a tuned rate to lift the front. The rear is lifted with new Glide-Ride Leaf Springs, 2" lift blocks, and extended greasable shackles that really let the springs flex.

This system also incorporates BDS Ultimate sway bar disconnects for quick easy access to ridiculous wheel travel and stainless steel brake lines to handle it. Bump stop extension are included to limit compression and keep the tires out of the fenders on the trail. A front adjustable track bar fits into the existing frame mount, so drilling of the taper is not required and will allow you to accurately center the front axle. To match the steering w/ the track bar angle, an extreme drop pitman arm is provided.

This system is available with both flex and standard control arm bushings, and many other upgrades. To check it out all of the options BDS has for your XJ, customize your kit and see what our competition is up against.

If you truly want to do it right the first time, install the BDS 8.5" Long Arm system and have no regrets.

Features

  • Important Kit Notes

    • 1. Measure the rear u-bolts before ordering. Some XJ's are equipped with a Dana 44 rear axle.
    • 3. CV style rear driveshaft (not included) and slip yoke eliminator kit is required.
    • 4. System only works with 4.0L motor and automatic transmission.
    • 5. Some welding required.
    • 6. '96 and earlier models may require a longer emergency brake cable.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/15 x 8 and 4" back spacing
    • Est. Installation: 10 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 1987 Jeep Cherokee XJ
    • 1988 Jeep Cherokee XJ
    • 1989 Jeep Cherokee XJ
    • 1990 Jeep Cherokee XJ
    • 1991 Jeep Cherokee XJ
    • 1992 Jeep Cherokee XJ
    • 1993 Jeep Cherokee XJ
    • 1994 Jeep Cherokee XJ
    • 1995 Jeep Cherokee XJ
    • 1996 Jeep Cherokee XJ
    • 1997 Jeep Cherokee XJ
    • 1998 Jeep Cherokee XJ
    • 1999 Jeep Cherokee XJ
    • 2000 Jeep Cherokee XJ
    • 2001 Jeep Cherokee XJ
