BDS Suspension Chevrolet/GMC 6-1/2" Lift Kit for 2011-19 2500 & 3500 HD Silverado/Sierra - 196H

(0) Reviews: Write first review
BDS196H
Pricing: $2,684.69

Customize Your Item

- Rear Lift Kit Upgrades: -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Shock Options -
 * required
- Steering Stabilizer -
 * required
- Traction Bars -
 * required
Qty:
Free Shipping

Description

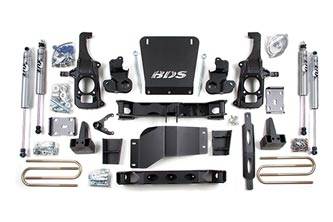

This 6-1/2" lift kit utilizes high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 6-1/2"dramatically increasing ground clearance at the front crossmembers and improving operating geometry. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember.

A front skid plate and differential skid plate come standard to lock everything together, creating a nearly indestructible sub frame for extreme off road protection.

Customize this lift kit by choosing a 3" or 5" rear block kit, NX² series or Fox 2.0 gas shock absorbers, and a NX² series or 9500 Series Steering Stabilizer.

Tire & Wheel Combinations
37" x 12.50" w/17 x 8 and 4-1/2" to 4-5/8" back spacing
37" x 12.50" w/18 x 9 and 4-1/2 to 4-5/8" back spacing
37" x 12.50" w/20 x 9 and 5" - 6" back spacing
*Trimming may be required*

Est. Installation: 8-10 hours
Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information
2011 Chevy / GMC 1 Ton Pickup 2WD
2012 Chevy / GMC 1 Ton Pickup 2WD
2013 Chevy / GMC 1 Ton Pickup 2WD
2014 Chevy / GMC 1 Ton Pickup 2WD
2015 Chevy / GMC 1 Ton Pickup 2WD
2016 Chevy / GMC 1 Ton Pickup 2WD
2017 Chevy / GMC 1 Ton Pickup 2WD
2018 Chevy / GMC 1 Ton Pickup 2WD
2019 Chevy / GMC 1 Ton Pickup 2WD
2011 Chevy / GMC 1 Ton Pickup 4WD
2012 Chevy / GMC 1 Ton Pickup 4WD
2013 Chevy / GMC 1 Ton Pickup 4WD
2014 Chevy / GMC 1 Ton Pickup 4WD
2015 Chevy / GMC 1 Ton Pickup 4WD
2016 Chevy / GMC 1 Ton Pickup 4WD
2017 Chevy / GMC 1 Ton Pickup 4WD
2018 Chevy / GMC 1 Ton Pickup 4WD
2019 Chevy / GMC 1 Ton Pickup 4WD
2011 Chevy / GMC 3/4 Ton Pickup 2WD
2012 Chevy / GMC 3/4 Ton Pickup 2WD
2013 Chevy / GMC 3/4 Ton Pickup 2WD
2014 Chevy / GMC 3/4 Ton Pickup 2WD
2015 Chevy / GMC 3/4 Ton Pickup 2WD
2016 Chevy / GMC 3/4 Ton Pickup 2WD
2017 Chevy / GMC 3/4 Ton Pickup 2WD
2018 Chevy / GMC 3/4 Ton Pickup 2WD
2019 Chevy / GMC 3/4 Ton Pickup 2WD
2011 Chevy / GMC 3/4 Ton Pickup 4WD
2012 Chevy / GMC 3/4 Ton Pickup 4WD
2013 Chevy / GMC 3/4 Ton Pickup 4WD
2014 Chevy / GMC 3/4 Ton Pickup 4WD
2015 Chevy / GMC 3/4 Ton Pickup 4WD
2016 Chevy / GMC 3/4 Ton Pickup 4WD
2017 Chevy / GMC 3/4 Ton Pickup 4WD
2018 Chevy / GMC 3/4 Ton Pickup 4WD
2019 Chevy / GMC 3/4 Ton Pickup 4WD

Features

  • Important Kit Notes

    • 1. Torsion Bar Tool required to load/unload the torsion bars.
    • 2. Requires frame bracket and differential modification
    • 3. 3" rear block kit recommended for dually applications, 5" rear block kit will not fit dually applications.
    • 4. Stock 17" & 18" wheels cannot be re-installed. Stock 20" can be used with up to a 35.12.50 tire.
    • 5. Factory dually wheels cannot be re-installed.
    • 6. Models with two piece rear driveshaft may require #121612.
    • 7. If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 37" x 12.50" w/17 x 8 and 4-1/2" to 4-5/8" back spacing
    • 37" x 12.50" w/18 x 9 and 4-1/2 to 4-5/8" back spacing
    • 37" x 12.50" w/20 x 9 and 5" - 6" back spacing
    • Est. Installation: 8-10 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 2011 Chevy / GMC 1 Ton Pickup 2WD
    • 2012 Chevy / GMC 1 Ton Pickup 2WD
    • 2013 Chevy / GMC 1 Ton Pickup 2WD
    • 2014 Chevy / GMC 1 Ton Pickup 2WD
    • 2015 Chevy / GMC 1 Ton Pickup 2WD
    • 2011 Chevy / GMC 1 Ton Pickup 4WD
    • 2012 Chevy / GMC 1 Ton Pickup 4WD
    • 2013 Chevy / GMC 1 Ton Pickup 4WD
    • 2014 Chevy / GMC 1 Ton Pickup 4WD
    • 2015 Chevy / GMC 1 Ton Pickup 4WD
    • 2011 Chevy / GMC 3/4 Ton Pickup 2WD
    • 2012 Chevy / GMC 3/4 Ton Pickup 2WD
    • 2013 Chevy / GMC 3/4 Ton Pickup 2WD
    • 2014 Chevy / GMC 3/4 Ton Pickup 2WD
    • 2015 Chevy / GMC 3/4 Ton Pickup 2WD
    • 2011 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
    • 2012 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
    • 2013 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
    • 2014 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
    • 2015 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
