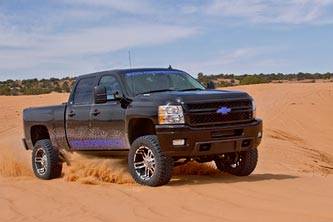

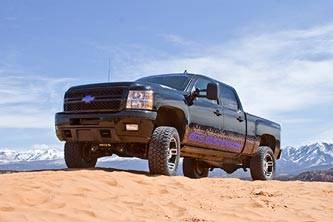

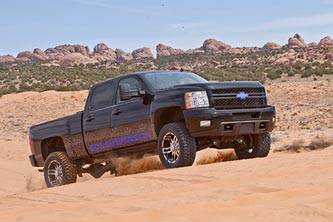

BDS Suspension 2011-2019 Chevy 2500HD 2wd/4wd 4.5" No Torsion Bar Drop Suspension System - 719H

BDS719H
Was: $2,451.46
Sale: $2,328.88
Save: 5%
Save: $122.58

Customize Your Item

- Rear Lift Height & Shock Options -
 * required
- Steering Stabilizer Option -
 * required
- Carrier Bearing Drop -
 * required
- Shock Boot Options -
 * required
- Traction Bars -
 * required
Qty:
Free Shipping

Description

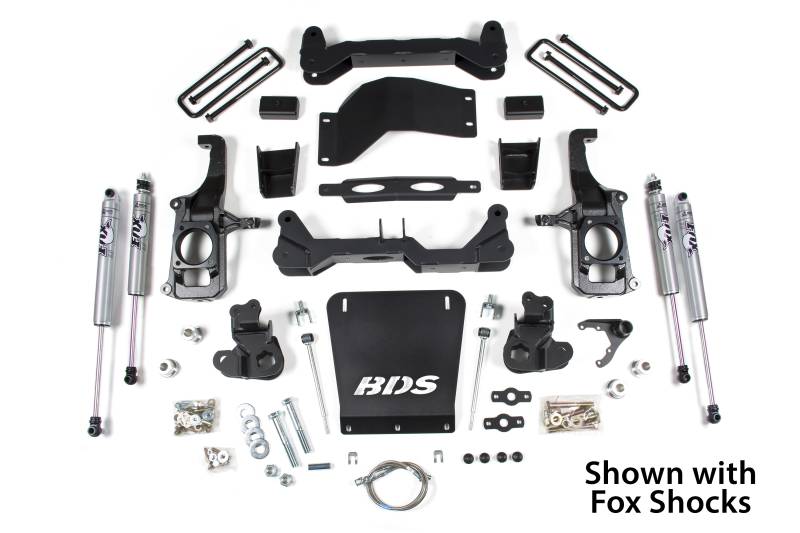

Like many of our other IFS suspension systems for the Chevys, this 4.5" system is packed with the same features and benefits of the current 6.5" kit but designed for a lower lift height for those looking for a more modest setup. Like the 6.5" system, the 4.5" includes one piece crossmembers, differential drop brackets, ductile cast iron steering knuckles and bolt-on no torsion bar drop brackets that keep the torsion bars in the factory location at the frame. Also included are stainless steel front brake lines, extended sway bar links and differential skid plates. The front replacement steel splash guard with the BDS logo finishes out the front of the clean, high clearance design. In the rear, the system comes with a 2" block and u-bolt setup that levels the vehicle perfectly. For those looking for a little more height in the rear, the existing 3" rear block kits can be substituted in..


Important Kit Notes

1. Torsion Bar Tool required to load/unload the torsion bars.
2. Requires frame bracket and differential modification
3. Stock 17" & 18" wheels cannot be reinstalled.
4. Stock 20" x 8.5" wheels with 6" backspacing or less will fit with a max tire size of 35 x 12.50
5. Factory dually wheels cannot be reinstalled.
6. Models with two piece rear driveshaft may require #121612.
7. Top mounted rear overload spring equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
8. Depending on the specific wheel and tire combination trimming may be required for 35x12.50s



Vehicle Fitment Information
2011 Chevy / GMC 1 Ton Pickup 2WD
2012 Chevy / GMC 1 Ton Pickup 2WD
2013 Chevy / GMC 1 Ton Pickup 2WD
2014 Chevy / GMC 1 Ton Pickup 2WD
2015 Chevy / GMC 1 Ton Pickup 2WD
2016 Chevy / GMC 1 Ton Pickup 2WD
2017 Chevy / GMC 1 Ton Pickup 2WD
2018 Chevy / GMC 1 Ton Pickup 2WD
2019 Chevy / GMC 1 Ton Pickup 2WD
2011 Chevy / GMC 1 Ton Pickup 4WD
2012 Chevy / GMC 1 Ton Pickup 4WD
2013 Chevy / GMC 1 Ton Pickup 4WD
2014 Chevy / GMC 1 Ton Pickup 4WD
2015 Chevy / GMC 1 Ton Pickup 4WD
2016 Chevy / GMC 1 Ton Pickup 4WD
2017 Chevy / GMC 1 Ton Pickup 4WD
2018 Chevy / GMC 1 Ton Pickup 4WD
2019 Chevy / GMC 1 Ton Pickup 4WD
2011 Chevy / GMC 3/4 Ton Pickup 2WD
2012 Chevy / GMC 3/4 Ton Pickup 2WD
2013 Chevy / GMC 3/4 Ton Pickup 2WD
2014 Chevy / GMC 3/4 Ton Pickup 2WD
2015 Chevy / GMC 3/4 Ton Pickup 2WD
2016 Chevy / GMC 3/4 Ton Pickup 2WD
2017 Chevy / GMC 3/4 Ton Pickup 2WD
2018 Chevy / GMC 3/4 Ton Pickup 2WD
2019 Chevy / GMC 3/4 Ton Pickup 2WD
2011 Chevy / GMC 3/4 Ton Pickup 4WD
2012 Chevy / GMC 3/4 Ton Pickup 4WD
2013 Chevy / GMC 3/4 Ton Pickup 4WD
2014 Chevy / GMC 3/4 Ton Pickup 4WD
2015 Chevy / GMC 3/4 Ton Pickup 4WD
2016 Chevy / GMC 3/4 Ton Pickup 4WD
2017 Chevy / GMC 3/4 Ton Pickup 4WD
2018 Chevy / GMC 3/4 Ton Pickup 4WD
2019 Chevy / GMC 3/4 Ton Pickup 4WD

Manufacturer Notes

Tire & Wheel Combinations
35" x 12.50" w/17 x 8 and 4-1/2" to 4-5/8" back spacing
35" x 12.50" w/18 x 9 and 4-1/2" to 4-5/8" back spacing
35" x 12.50" w/20 x 9 and 5" - 6" back spacing
Est. Installation: 8-10 hours
Difficulty Level (easy 1 - 5 complicated): 4

Warranty

BDS Suspension Lift Kit Warranty
No Fine Print Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
