BDS Suspension 2-3" Coil-Over Conversion Suspension System for 2011-2019 Chevy/GMC 2500HD/3500HD - 723FDSC

BDS723FDSC
Was: $4,849.02
Sale: $4,606.59
Save: 5%
Save: $242.43

Customize Your Item

- Overload Selection -
 * required
- Rear Shock Selection -
 * required
- RECOIL Traction Bar System -
 * required
- Skid Plate Kit Selection -
 * required
Qty:
Free Shipping

Description

For years now, Chevy Silverado HD and GMC Sierra/Denali HD owners have been limited to the traditional torsion bar system suspension options. BDS Suspension is excited to add next level technology for improved performance. Adding to the current 4.5" and 6.5" high clearance no torsion bar drop systems offered for 2011+ Chevy/GMC HD trucks, BDS is now shipping 2-3" coilover conversion systems for superior ride quality and performance over any terrain. These new coilover systems have been engineered and tested for improved comfort, fade free performance, and increased suspension travel.

The new 2-3" coilover system is a game changer for HD performance. At the heart of the system is a pair of FOX 2.5 Factory Series Coilover with remote DSC reservoir. These coilovers offer vastly superior dampening for impressive capability to soak up the harshest terrains offroad while offering comfort on your daily commute .These FOX coilovers feature a smooth bore and honed seamless alloy body, 7/8" hardened stainless steel shaft, FOX coil springs, black anodized machined 6061-T6 billet aluminum mounts and FOX's DSC (dual speed compression) adjustment technology. DSC is the next big thing in suspension performance allowing for easy adjustment of the vehicle's suspension compression dampening to dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the "blue" high speed and "gold" low speed compression knobs located on the end of the remote reservoir of the FOX 2.5 coilovers. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail. The coilovers come fully assembled, preset for 2.5'' of lift for optimal wheel travel, but can be adjusted between 2-3" of lift with the use of (#129600) spanner wrench. To mount the coilovers BDS supplies a bolt-on bracket that installs on the frame in the shock mount location. A weld-in support gusset is used to reinforce the upper mount, however still allows the kit to be completely reversible if the owner ever chooses to revert back to the torsion bar style suspension and upgrade the suspension on another truck.

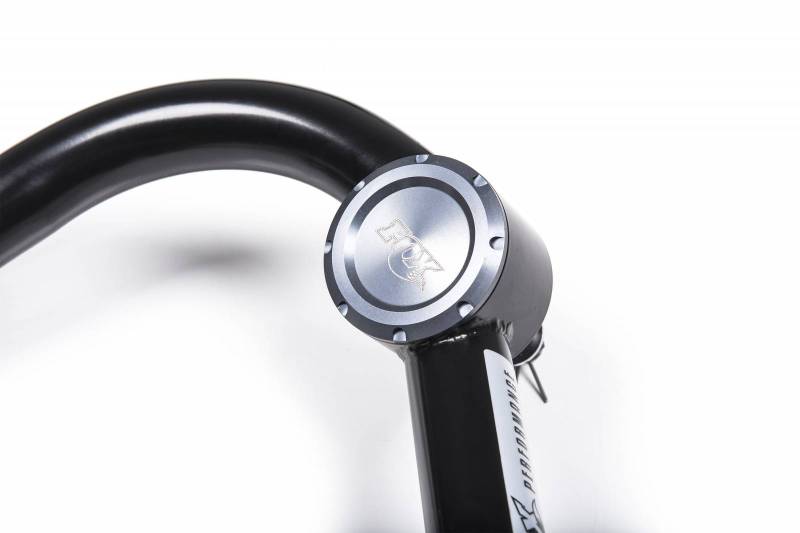

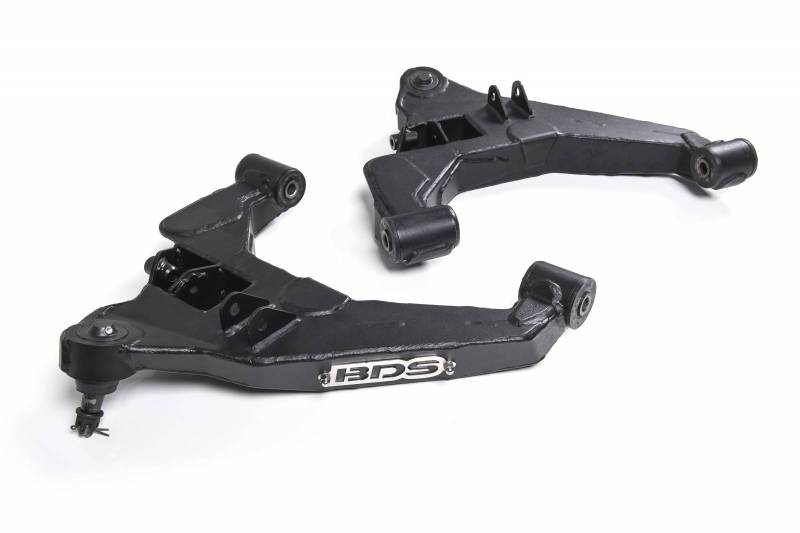

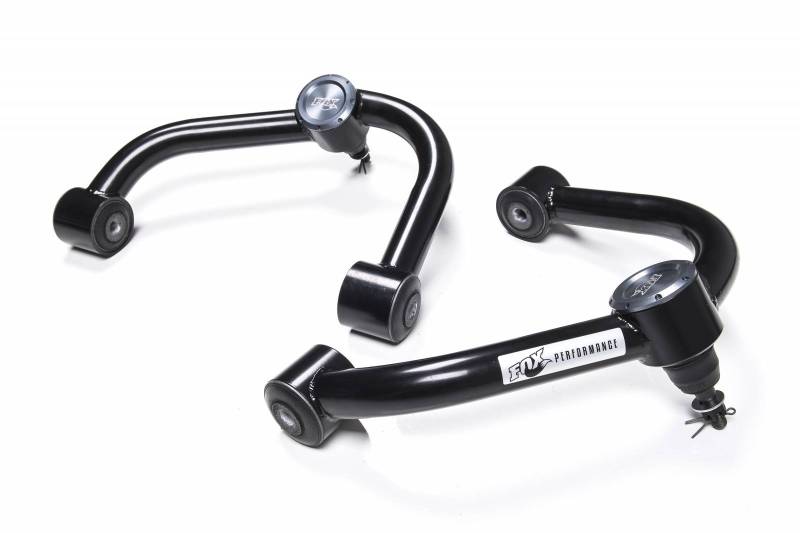

In addition to replacing the factory torsion bars, the upper and lower control arms are upgraded to improved strength, travel, and accommodate the new coilovers. The uppers are FOX's new performance upper control arms designed specifically for this system to integrate with the 2.5 coilovers. The arms are fabricated from large 1.5" OD x .120-wall chromoly tubing, fully TIG welded for the highest quality, strength and durability. The arms utilize premium Moog brand ball joints and factory style rubber bushings for smooth, quiet operation and superior durability when compared to arms with uni-balls, poly bushings or heims. The ball joint cups are repositioned for optimal performance allowing a 30% improvement in wheel travel. The FOX upper control arms are finished in a durable black powdercoat and include a FOX branded billet aluminum ball joint dust cap. The control arms come fully assembled for easy install right out of the box. To compliment the uppers, the new lower control arms are built from high strength steel, fully boxed with internally gusseted. These lower arms integrate new reinforced lower coilover mounts and similar to the uppers use durometer specific rubber bushings at the frame mount and high quality Moog ball joints at the knuckle mount for quiet, low maintenance operation.

Rounding out the front suspension BDS supplies front differential relocation to correct CV axle operating angle to optimize CV performance. The relocation hardware installs easily with no differential modification needed while also allowing the reinstallation of the factory skid plate. Longer sway bar links are also included and bolt directly in place of the factory links to correct sway bar operating angle.

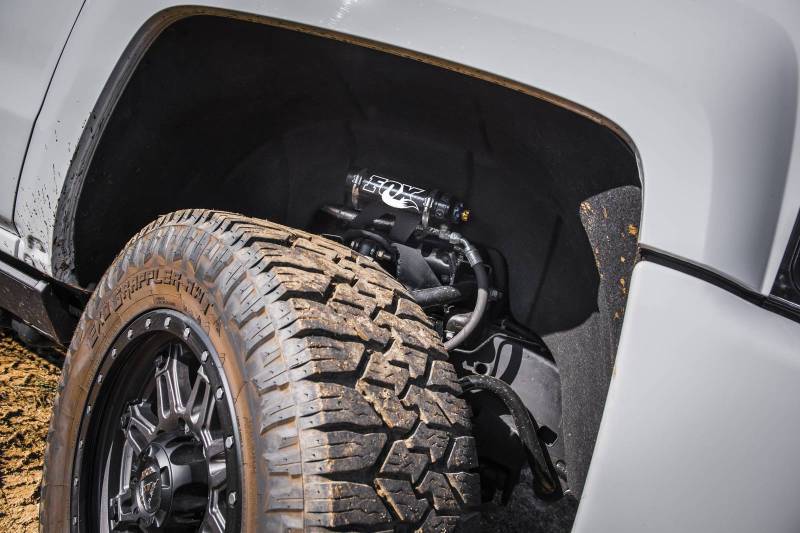

In the rear, BDS offers a simple block and u-bolt kit that retains ride quality and full use of the factory overload spring (if equipped). The rear comes standard with precision tuned FOX 2.0 IFP gas shocks and is available with optional FOX factory series 2.5 remote reservoir shocks. Additional options and accessories are in development; stay tuned for more information as new products are released.

If you're looking to get more out of your 2011+ Chevy Silverado HD or GMC Sierra/Denali HD look to BDS Suspension and the new 2-3" Coilover Conversion System.

FOX Coil-Over Dual Speed Compression (DSC) Adjuster Technology
The Dual Speed Compression (DSC) adjuster provides added control and comfort tuning for on-road use while also offering more aggressive damping for use off-road. The adjuster allows for precise suspension tuning with the simple twist of two clearly defined knobs: No tools and no mess, just a way to easily fine-tune your suspension to best suit your needs in any conditions. The DSC increases both low and high-speed compression levels up to 25%, allowing you to maximize small bump compliance and traction while still having the extra damping required for big hits.

- LSC Adjustment Range -
The Low Speed Compression (LSC) adjuster knob offers 10 clicks of adjustment and primarily affects compression damping during slow suspension movements such as G-outs or smooth jump landings. It also affects wheel traction and the harshness or plushness of the vehicle's ride.

- HSC Adjustment Range -
The High Speed Compression (HSC) adjuster knob offers 12 clicks of adjustment and mainly affects compression damping during medium to fast suspension movements such as steep jump faces, harsh flat landings, and aggressive wash board roads.

Vehicle Fitment Information
2011 Chevy / GMC 1 Ton Pickup 2WD
2012 Chevy / GMC 1 Ton Pickup 2WD
2013 Chevy / GMC 1 Ton Pickup 2WD
2014 Chevy / GMC 1 Ton Pickup 2WD
2015 Chevy / GMC 1 Ton Pickup 2WD
2016 Chevy / GMC 1 Ton Pickup 2WD
2017 Chevy / GMC 1 Ton Pickup 2WD
2018 Chevy / GMC 1 Ton Pickup 2WD
2019 Chevy / GMC 1 Ton Pickup 2WD
2011 Chevy / GMC 1 Ton Pickup 4WD
2012 Chevy / GMC 1 Ton Pickup 4WD
2013 Chevy / GMC 1 Ton Pickup 4WD
2014 Chevy / GMC 1 Ton Pickup 4WD
2015 Chevy / GMC 1 Ton Pickup 4WD
2016 Chevy / GMC 1 Ton Pickup 4WD
2017 Chevy / GMC 1 Ton Pickup 4WD
2018 Chevy / GMC 1 Ton Pickup 4WD
2019 Chevy / GMC 1 Ton Pickup 4WD
2011 Chevy / GMC 3/4 Ton Pickup 2WD
2012 Chevy / GMC 3/4 Ton Pickup 2WD
2013 Chevy / GMC 3/4 Ton Pickup 2WD
2014 Chevy / GMC 3/4 Ton Pickup 2WD
2015 Chevy / GMC 3/4 Ton Pickup 2WD
2016 Chevy / GMC 3/4 Ton Pickup 2WD
2017 Chevy / GMC 3/4 Ton Pickup 2WD
2018 Chevy / GMC 3/4 Ton Pickup 2WD
2019 Chevy / GMC 3/4 Ton Pickup 2WD
2011 Chevy / GMC 3/4 Ton Pickup 4WD
2012 Chevy / GMC 3/4 Ton Pickup 4WD
2013 Chevy / GMC 3/4 Ton Pickup 4WD
2014 Chevy / GMC 3/4 Ton Pickup 4WD
2015 Chevy / GMC 3/4 Ton Pickup 4WD
2016 Chevy / GMC 3/4 Ton Pickup 4WD
2017 Chevy / GMC 3/4 Ton Pickup 4WD
2018 Chevy / GMC 3/4 Ton Pickup 4WD
2019 Chevy / GMC 3/4 Ton Pickup 4WD



Notes

Tire & Wheel Combinations
305/55R20 w/20 x 9 and 5 - 5.5" back spacing
35x12.50R20 w/20 x 9 and 5 - 5.5" back spacing
Est. Installation: hours
Difficulty Level (easy 1 - 5 complicated):

Warranty

BDS Suspension Lift Kit Warranty
No Fine Print Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
