BDS 6" Lift Kit FOR 2021-2023 Ford F150 4WD w/ CCD

Take your Ford F150 to the next level - now available for trucks eqipped with CCD!

These precision built and ultra capable 6" lift systems offer improved vehicle performance and allow clearance for 35-37" tires. Designed specifically for trucks equipped with CCD (Continuously Controlled Damping), this IFS system is based around the tried and true high clearance design that has made BDS the go-to option when lifting F150s. These systems include everything necessary to correct suspension, steering and driveline geometry to maintain on-road handling while improving strength and offroad capability.

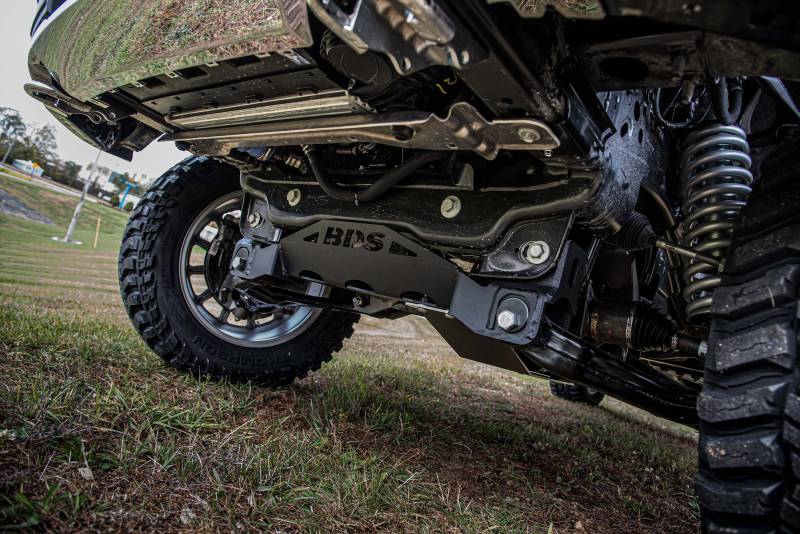

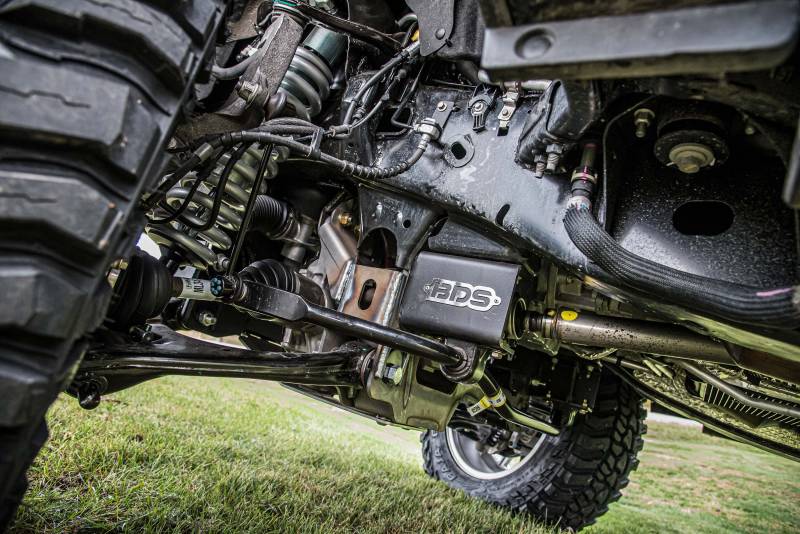

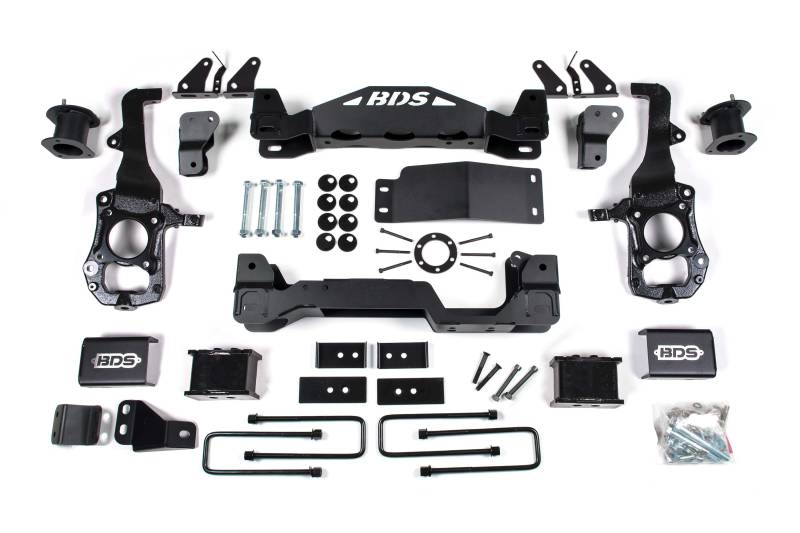

Kits feature a pair of high strength crossmembers, along with differential skid plate, steering knuckles, differential relocation brackets, top mounted strut spacers, sway bar relocation, brake line relocation, driveshaft extension, alignment cam bolts, rear blocks, and longer u-bolts.

Important Kit Notes

• 1. Will not work with aftermarket Upper Control Arm kits.
• 2. 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
• 3. 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire to frame crash bar clearance.
• 4. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
• 5. Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
• 6. Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
• 7. Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
• 8. This system has not been tested on models equipped with Ford BlueCruise.
• 9. Not compatible with Tremor models

• Tire & Wheel Combinations
• 37x12.50 w/18x9 or 20x9 and 5.5.-5.75" back spacing
• 35x12.50 w/20x9 and 4.5-5" back spacing

*Trimming may be required*

• Est. Installation: 8-10 hours
• Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information

• 2021 Ford F150 4WD w/ CCD
• 2022 Ford F150 4WD w/ CCD
• 2023 Ford F150 4WD w/ CCD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
