BDS 2" Snap Ring Coilover Lift Kit FOR 2021-2023 Ford F150 4WD

2" Snap Ring Coil-Over Lift Kit Systems

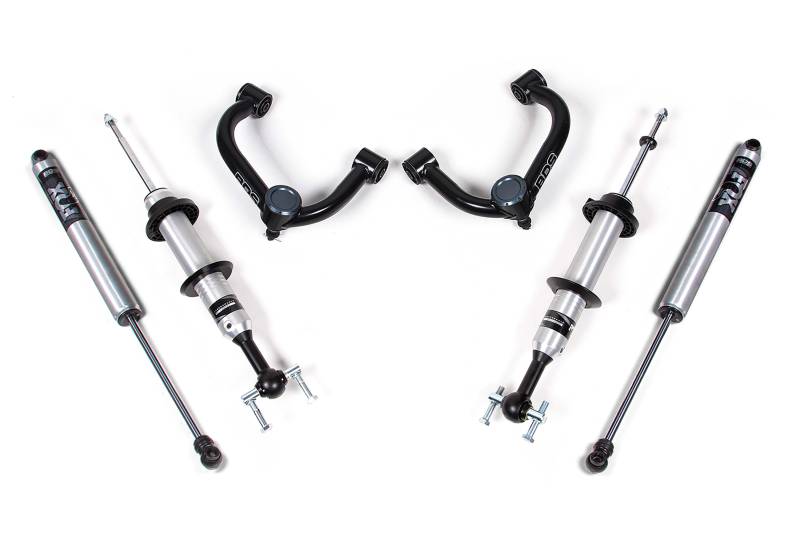

At the heart of these 2" coilover systems are a pair of specially tuned FOX 2.0 Performance Series IFP coilovers. The non-reservoir snap ring coilovers utilize a collar to allow for up to 2" of lift when used with the factory coil springs and top plate. Also available are fully assembled Fox 2.0 Performance Series coilovers that are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, and a 5/8" hard chrome plated heat treated alloy shaft.

Also supplied as part of these complete 2" lift systems are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. In the rear are a pair of specially tuned FOX 2.0 Performance Series IFP shocks designed to pair with the front coilovers for impressive performance on and offroad and to allow clearance for larger tires under Tacoma.

Important Kit Notes

• 1. Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
• 2. Control arms with sensor are designed to keep the sensor arm in the stock position (same position as the OE control arm).
• 3. Not designed to work with trucks with CCD.
• 4. Do NOT hit the aluminum knuckle on later model trucks with a hammer to separate the ball joint. Use appropriate ball joint separation tool.
• 5. For replacement ball joints, use BDS081203. Ball joint is directional and must be installed with the ?dot? facing either inward or outward on the vehicle, otherwise damage may occur.
• 6. Special Service Tool 204-592 recommended to dislodge the ball joint.
• 7. Not compatible on trucks with the On-Board Scales option

Get more out of your Ford F150 with these 2" coilover systems from BDS Suspension.

• Tire & Wheel Combinations
• 35x12.50 w/20 x 9 and 5.5" back spacing

*Trimming may be required*

• Est. Installation: 3 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2021 Ford F150 4WD
• 2022 Ford F150 4WD
• 2023 Ford F150 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
